KF120M-080-7L - Datasheet

MBA

Category Information

Knobs - Lobe - Seven Lobe - Female - Standard

Standard Female Seven Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M12 (12x1.75mm)
  • Head Diameter (A) 80 mm
    (Equiv. 3.15 in.)
  • Thread Length 21 mm
    (Equiv. 0.827 in.)
  • Colour Black
  • Hub Diameter (C) 50.50 mm
  • Hub Length (D) 36.000 mm
  • Knob Height (B) 21.00 mm
  • Material Brass
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NQJF12
  • CNQJF12
View full details

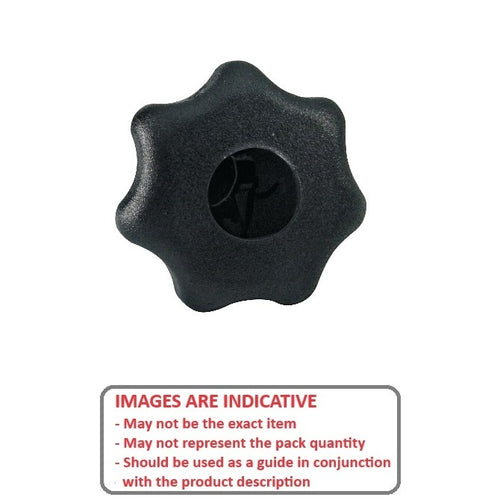

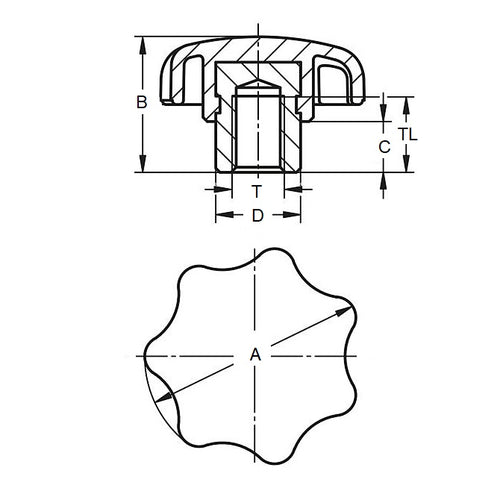

KF120M-080-7LDiagramKF120M-080-7LImage
