MLM-120M-100-ZRP-ECO - Datasheet
ECO
Category Information

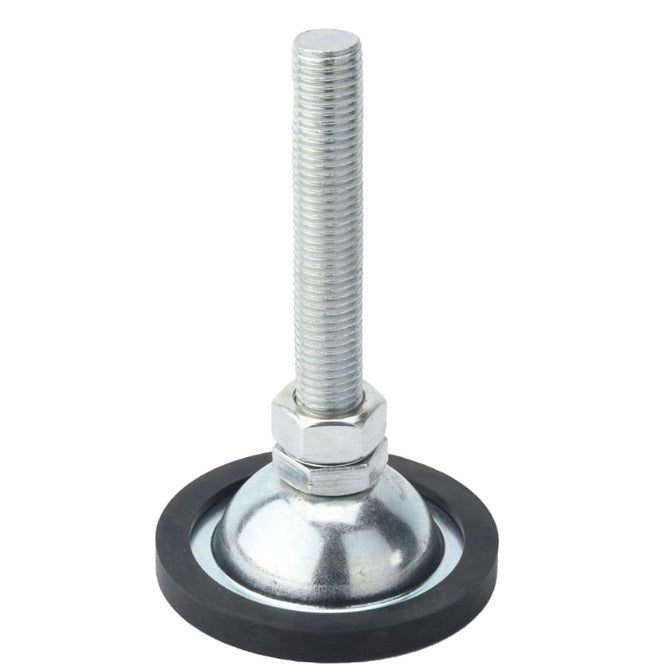

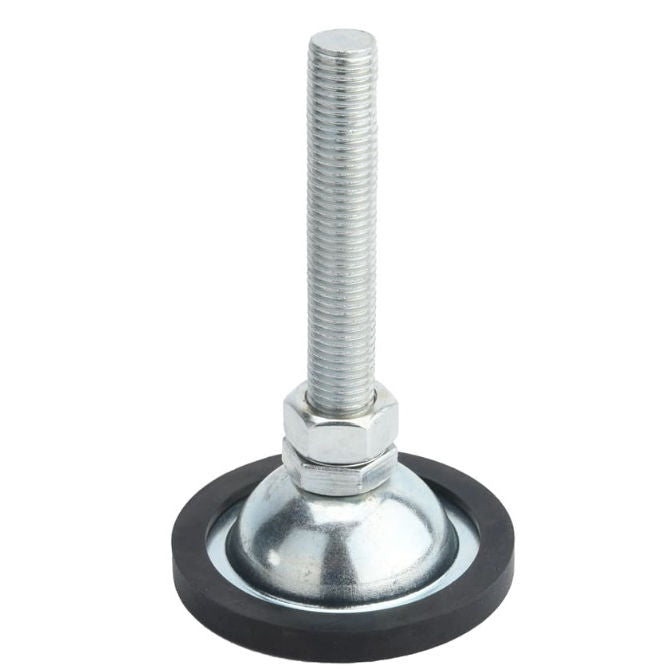

Mounts - Levelling Studded - Economy - Rubber PaddedRubber Padded Economy Levelling Studded Mounts. Levelling adjusters. Protects general metalworking processes equipment including punch presses, milling machines, lathes, mixers, injection moulding machines, grinders from shock and vibration.
- An expanded range may be available on special order. Please enquire.
Product Data

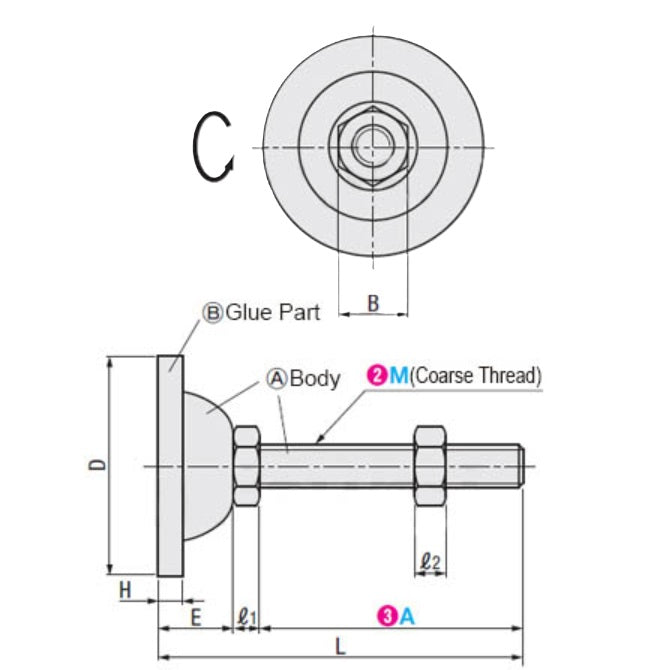

- Thread Size (A) : M12 (12x1.75mm)
- Base Diameter (D)
70.0
mm
(Equiv. 2.756 in.) - Foot Height (C)
31.0
mm
(Equiv. 1.22 in.) - Thread Length (F) 100.0 mm
- Base Height (E) 24.0 mm
- Overall Height 131.0 mm
- Load Rating 36.26 Kg
- Pad Thickness 7 mm
- Pad Material Rubber
- Hex Flats (B) 19 mm
- Material Steel - Zinc
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CFJGN12-100
- CCFJGN12100
