KM120M-063-5L30 - Datasheet

MBA

Category Information

Knobs - Lobe - Five Lobe - Male - Standard

Standard Male Five Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M12 (12x1.75mm)
  • Head Diameter (A) 63 mm
    (Equiv. 2.48 in.)
  • Thread Length 30 mm
    (Equiv. 1.181 in.)
  • Colour Black
  • Hub Diameter (C) 26.50 mm
  • Hub Length (D) 16.000 mm
  • Knob Height (B) 37.00 mm
  • Material Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NWJM12-30
  • CNWJM1230
View full details

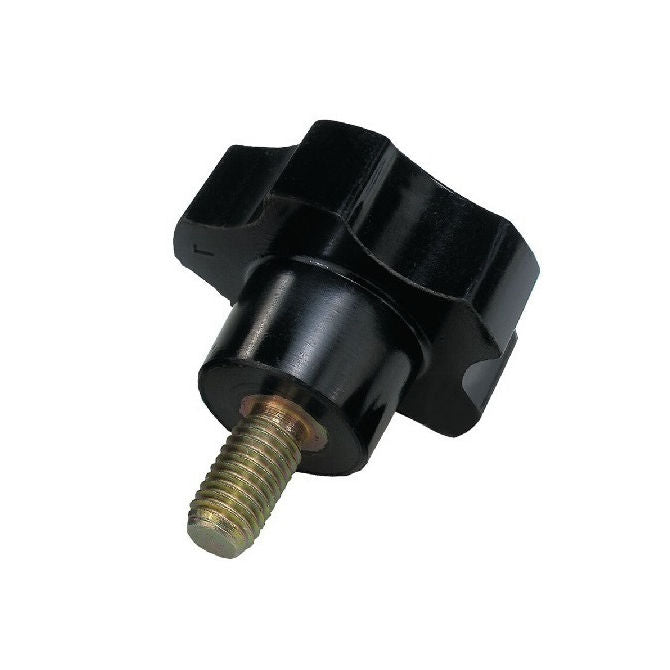

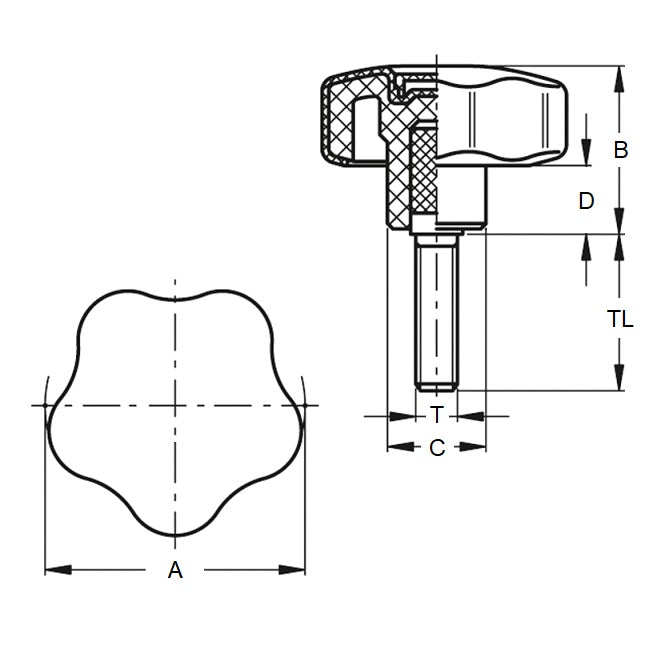

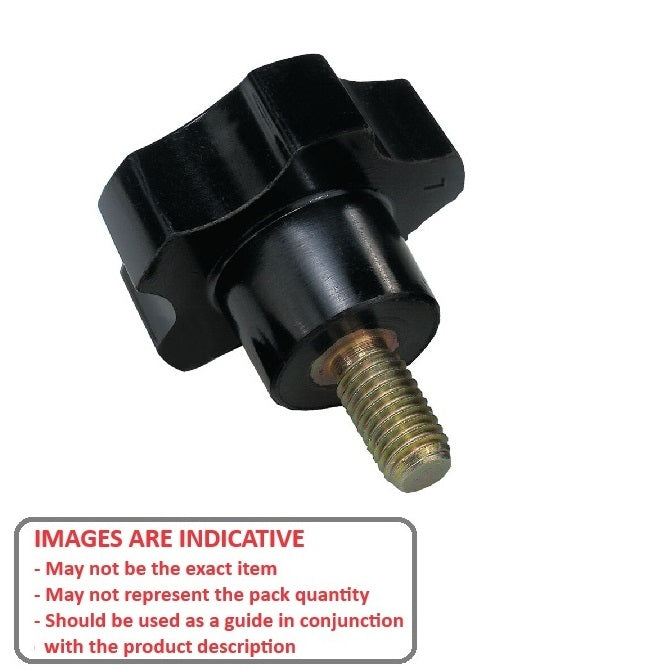

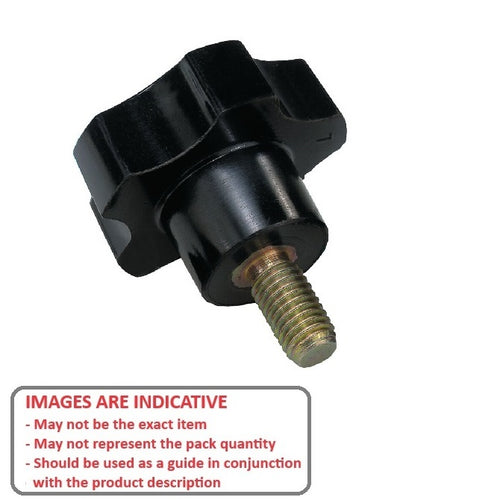

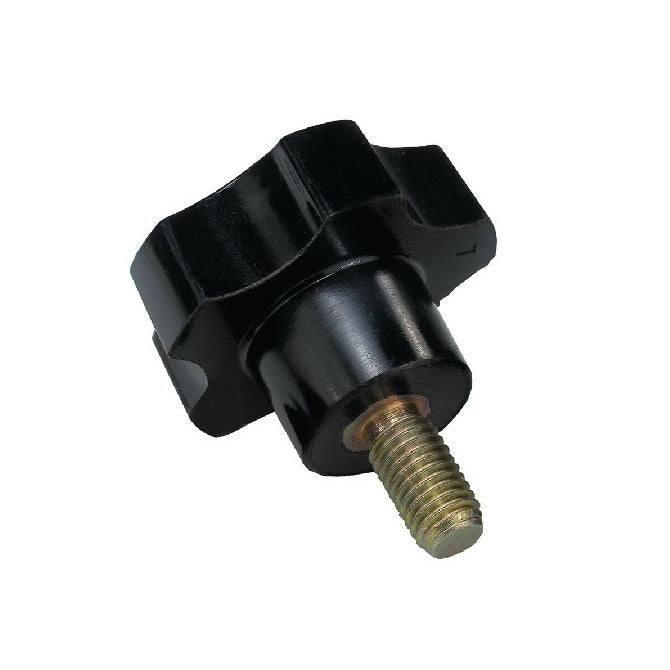

KM120M-063-5L30DiagramKM120M-063-5L30Image
