MSM-120M-120-CZRP - Datasheet
MBA
Category Information

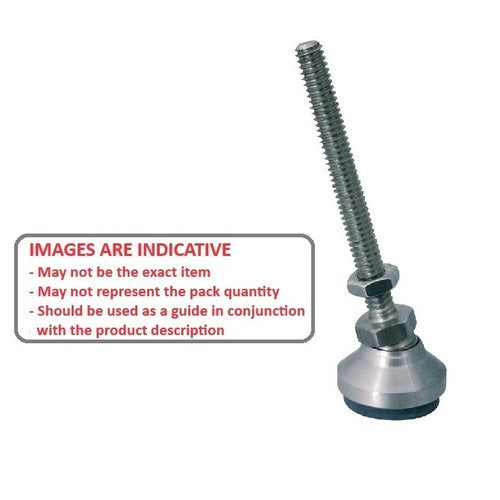

Mounts - Levelling Studded - Swivel - 303 Stainless - Rubber PaddedRubber Padded 303 Stainless Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M12 (12x1.75mm)
- Base Diameter (D)
60.00
mm
(Equiv. 2.362 in.) - Foot Height (C)
37.00
mm
(Equiv. 1.457 in.) - Thread Length (F) 120.00 mm
- Base Height (E) 28.50 mm
- Overall Height 157.0 mm
- Load Rating 600 Kg
- Finish Zinc Plated
- Pad Thickness 8.50 mm
- Pad Material Rubber
- Hex Flats (B) 19.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CFJFNV60-12-120
- CCFJFNV6012120
