MLM-120M-080-CNY-0LH - Datasheet
MBA
Category Information

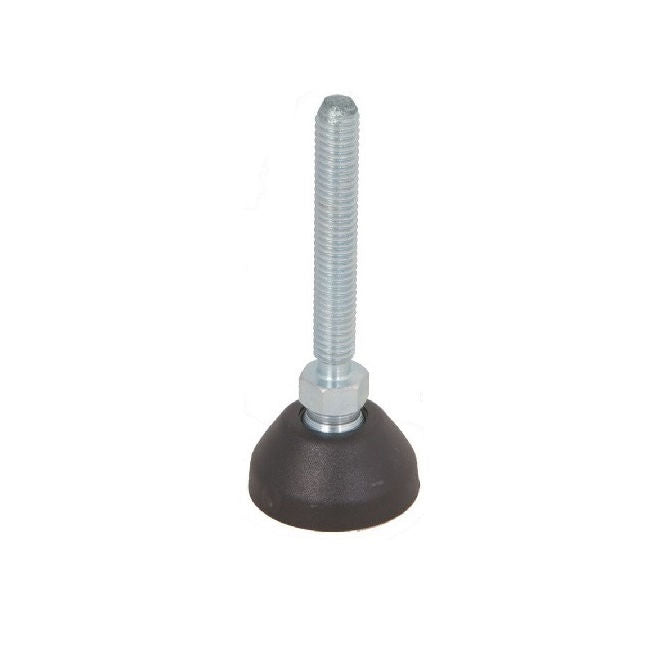

Mounts - Levelling Studded - Light Duty - Nylon - No Lag HolesNo Lag Holes Nylon Light Duty Levelling Studded Mounts. Adjusters.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M12 (12x1.75mm)
- Base Diameter (D)
60.00
mm
(Equiv. 2.362 in.) - Foot Height (C)
37.00
mm
(Equiv. 1.457 in.) - Thread Length (F) 80.00 mm
- Base Height (E) 37.0 mm
- Overall Height 117.0 mm
- Load Rating 210 Kg
- Finish Zinc Plated
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CFJLM12-80
- Misumi C-CFJLM60-12-80
- CCFJLM1280
- CCFJLM601280
