MLM-120M-120-NYCZNE - Datasheet
MBA
Category Information

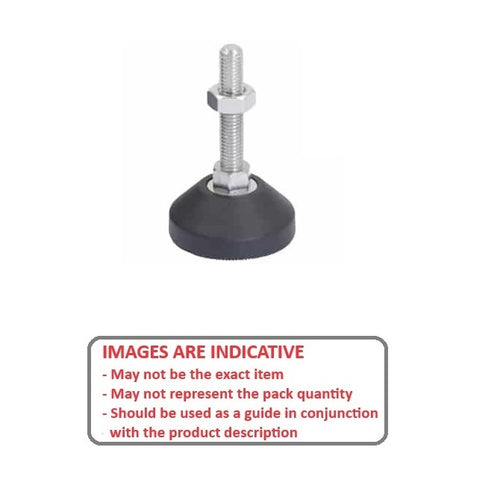

Mounts - Levelling Studded - Light Duty - Nylon - No Lag HolesNo Lag Holes Nylon Light Duty Levelling Studded Mounts. Adjusters.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M12 (12x1.75mm)
- Base Diameter (D) 60.00 mm
- Foot Height (C) 33.00 mm
- Thread Length (F) 120.00 mm
- Base Height (E) 13.00 mm
- Overall Height 153.0 mm
- Load Rating 100 Kg
- Finish Zinc Plated
- Neoprene Rubber
- 19.00
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi® C-CFBR60-12-120
- CCFBR6012120
