MLM-120M-100-NY-S4 - Datasheet
MBA
Category Information

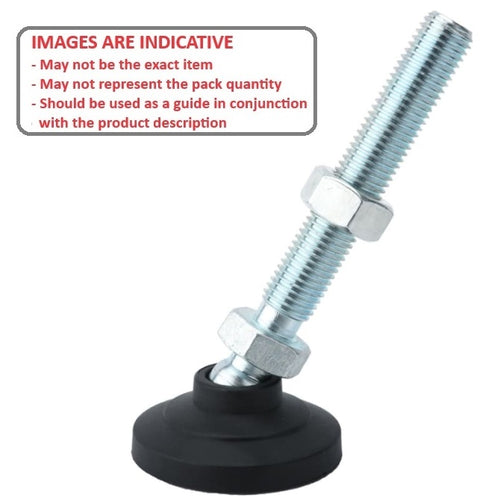

Mounts - Levelling Studded - Light Duty - Nylon - No Lag HolesNo Lag Holes Nylon Light Duty Levelling Studded Mounts. Adjusters.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M12 (12x1.75mm)
- Base Diameter (D)
60.00
mm
(Equiv. 2.362 in.) - Foot Height (C)
31.00
mm
(Equiv. 1.22 in.) - Thread Length (F) 100.00 mm
- Base Height (E) 7.50 mm
- Overall Height 131.0 mm
- Load Rating 150 Kg
- 19.00
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CAJPDS12-100
- CCAJPDS12100
