MLM-120M-100-Z-ECO - Datasheet

ECO

Category Information

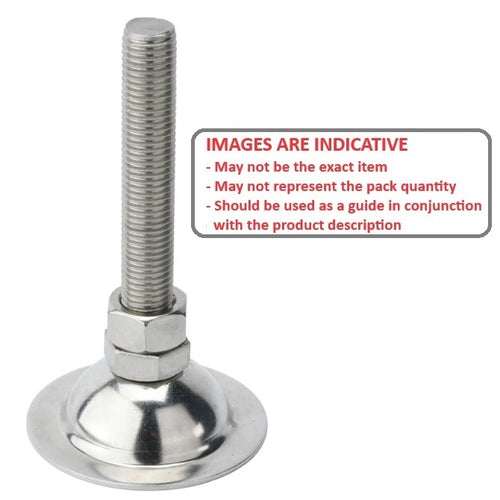

Mounts - Levelling Studded - Economy - Plain Base

Plain Base Economy Levelling Studded Mounts. Levelling adjusters. Protects general metalworking processes equipment including punch presses, milling machines, lathes, mixers, injection moulding machines, grinders from shock and vibration.

An expanded range may be available on special order. Please enquire.

Product Data

Thread Size (A) : M12 (12x1.75mm)
Base Diameter (D) 60.0 mm
Foot Height (C) 28.0 mm
Thread Length (F) 100.0 mm
Base Height (E) 26.0 mm
Overall Height 128.0 mm
Load Rating 44.10 Kg
Pad Thickness 2 mm
Pad Material Metal
Hex Flats (B) 19 mm
Material Steel - Zinc

Country of Origin: JP

Product Compliance and Data

RoHs Statement
REACH Statement
CoC

Additional Resources

Measuring Small Parts
Metalworking Resource Guide

Cross References

Misumi® C-CNFJN12-100
CCNFJN12100
