KM120M-050-8L15 - Datasheet

MBA

Category Information

Knobs - Lobe - Eight Lobe - Male

Male Eight Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M12 (12x1.75mm)
  • Head Diameter (A) 50 mm
    (Equiv. 1.969 in.)
  • Thread Length 15 mm
    (Equiv. 0.591 in.)
  • Colour Black
  • Hub Diameter © 25.00 mm
  • Hub Length (D) 14.000 mm
  • Knob Height (B) 25.00 mm
  • Material Phenolic and Brass
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NBJM12-15
  • CNBJM1215
View full details

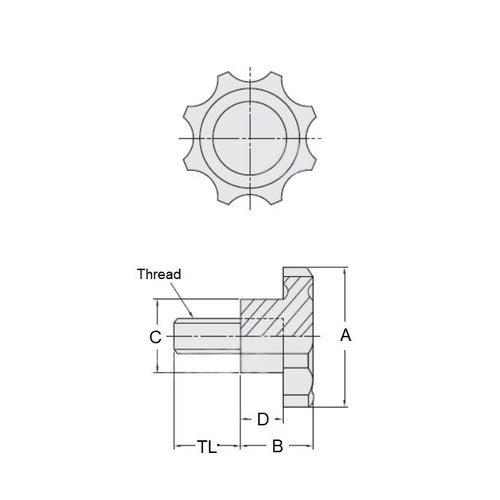

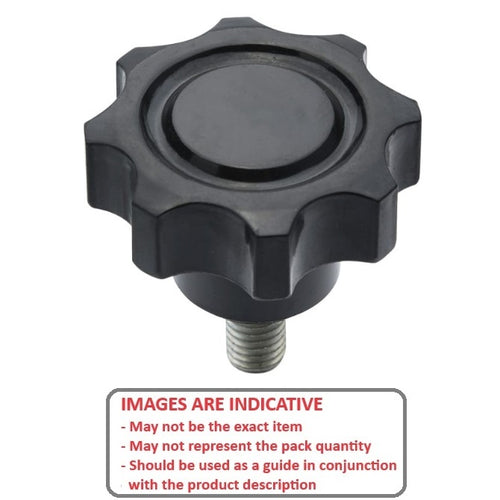

KM120M-050-8L15DiagramKM120M-050-8L15Image
