Miniature Bearings Australia
SS120M-0300-AS-UT - Datasheet
MBA
Category Information

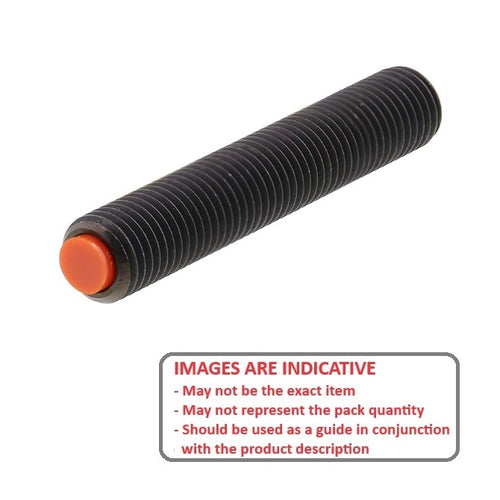

Socket Set Screws - Urethane Tipped - Alloy SteelAlloy Steel Urethane Tipped Socket Set Screws. Shore 70A Black Urethane tipped grub screws. Soft tip compresses into threads to become self locking. Helps to prevent shaft damage.
- Socket driven grub screw that uses a non-metallic tip made of urethane to prevent damage to the shaft it secures.
- Commonly used in applications where preservation of the workpiece's finish is important, such as in fixtures, jigs, and other mechanical assemblies
Product Data
- Thread Size : M12 (12x1.75mm)
- Thread Length (L)
30.0
mm
(Equiv. 1.181 in.) - Type Urethane Tipped
- Overall Length (L + L1) 32.0 mm
- Tip Diameter (d) 10.0 mm
- 2.0
- Body Material Black Oxide Steel
- Ball Material Chrome Steel
- Pitch 2 mm
- Threads Per Inch 14.510 TPI
- Material Black Oxide Steel with Chrome Steel tip
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi SBCT12-30
- SBCT1230
