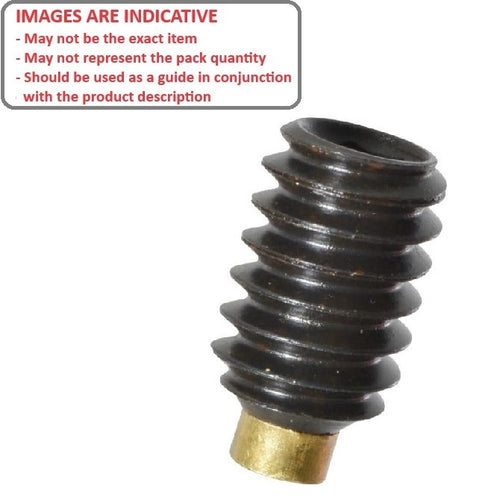

SS120M-0160-AS-BT - Datasheet

MBA

Product Data

• Thread Size : M12 (12x1.75mm)
• Thread Length (L) 16.0 mm
  (Equiv. 0.63 in.)
• Type Brass Tipped
• Overall Length (L + L1) 18.000 mm
• Tip Diameter (d) 10.000 mm
• Tip Length (L1) 2.000
• Pitch 1.75 mm
• Threads Per Inch 14.510 TPI
• Material Black Oxide Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
