KF100M-080-3LA - Datasheet

MBA

Category Information

Knobs - Lobe - Three Lobe - Female - Arched

Arched Female Three Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M10 (10x1.5mm) + 0.10 / - 0.00
  • Head Diameter (A) 80.0 mm + 0.00 / - 0.10
    (Equiv. 3.15 in.)
  • Thread Length 17.0 mm + 0.00 / - 0.12
    (Equiv. 0.669 in.)
  • Colour Black
  • Hub Diameter (C) 30.00 mm
  • Hub Length (D) 17.00 mm
  • 38.0 mm
  • Material Brass
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NSJF10
  • CNSJF10
View full details

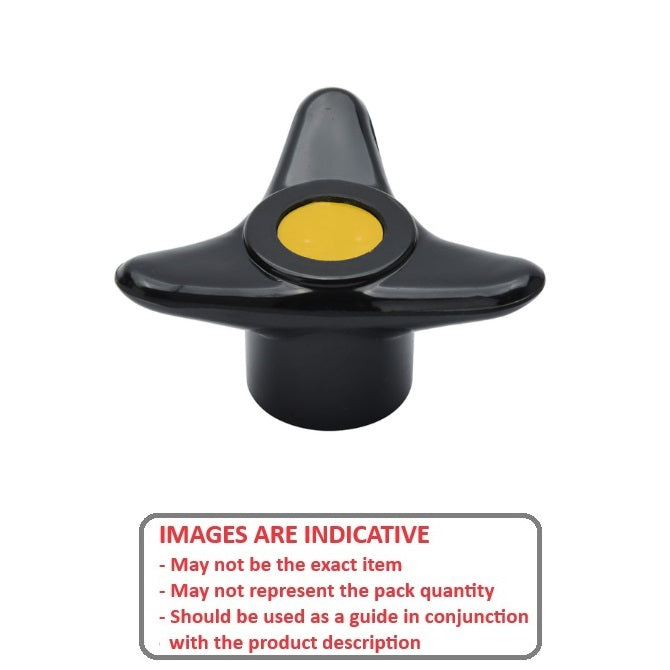

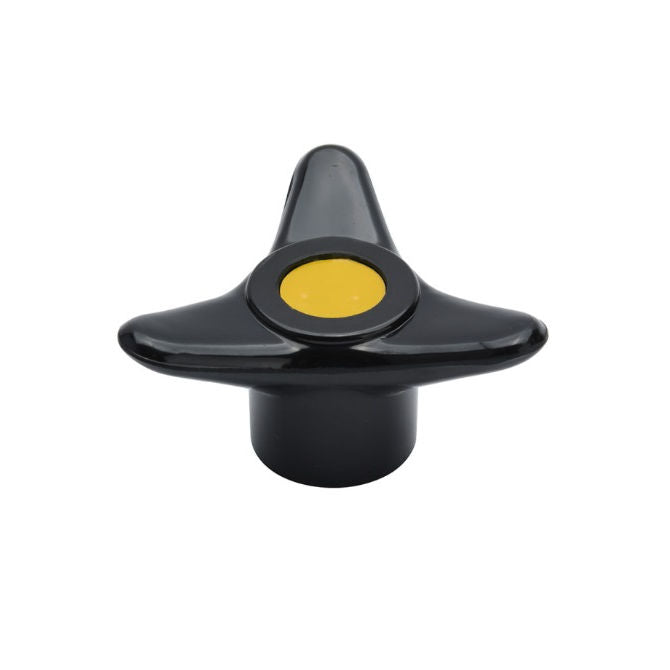

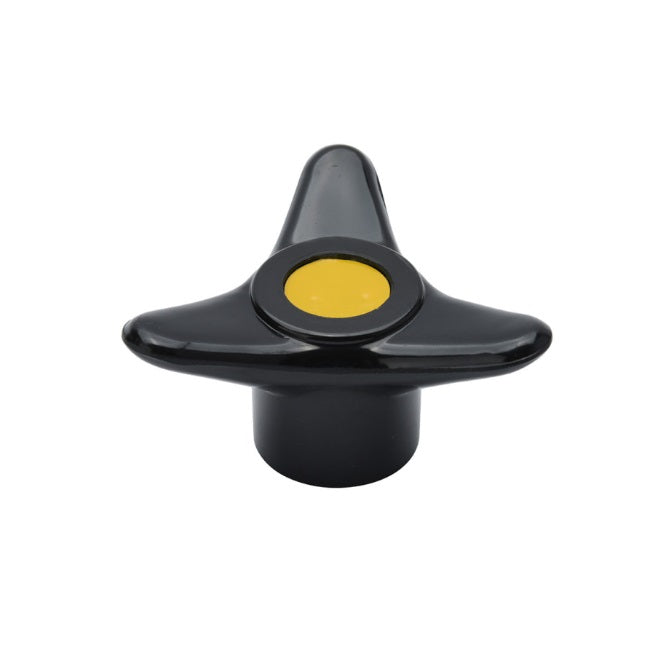

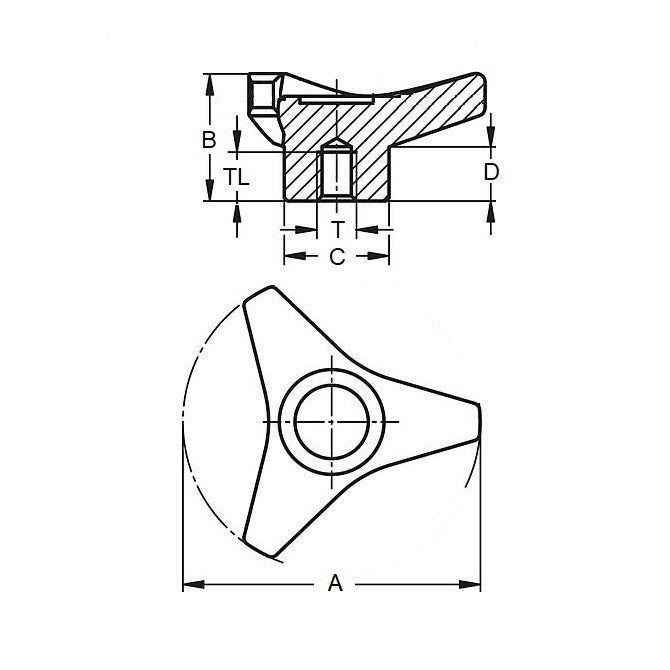

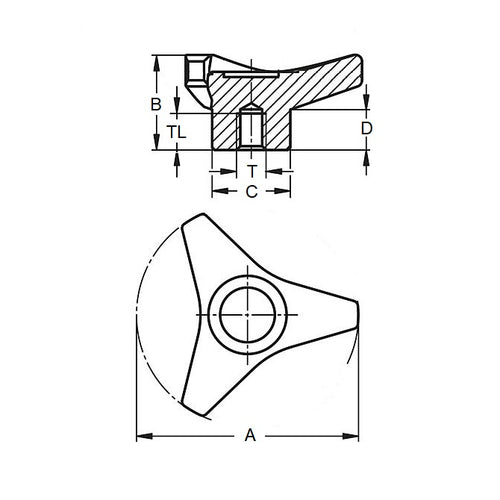

KF100M-080-3LADiagramKF100M-080-3LAImage
