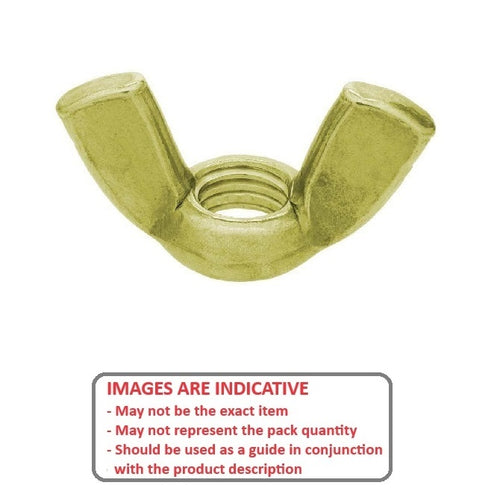

NT100M-WG-BR - Datasheet

MBA

Product Data

• Thread Size : M10 (10x1.5mm)
• Body Height (D) 6.3 mm
• Wing Width 35.0 mm
• Overall Height (C) 16.7 mm
• Pitch in mm / Threads Per Inch 1.500 mm / 16.93 TPI
• Material Brass

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Countersunk Head Screws

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Hitech BRWNP10
