SK100M-090-SK-S6 - Datasheet
Brighton Best
Category Information

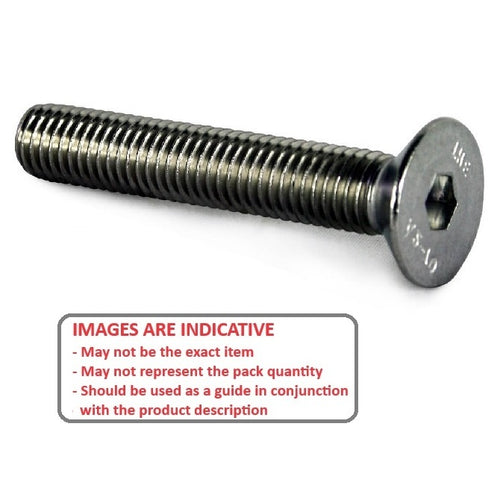

Screws - Countersunk - Socket - 316 Stainless316 Stainless Socket Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC - Stainless Steel
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7991.
- ISO 10642
- The thread length indicated is the minimum. Some batches may be produced with longer threaded sections or even full threaded shanks.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : M10 (10x1.5mm)
- Overall Length (L)
90
mm
+/- 0.70
(Equiv. 3.543 in.) - Material 316 Stainless
- Head Diameter (D) 18.0 mm
- Max Head Height 5.5 mm
- Minimum Thread Length (l) 26 mm
- Hex Key (s) 6.00 mm
- Countersunk Angle 90 °
- Pitch 1.500 mm
- Threads Per Inch 16.93 TPI
- Standard DIN7991
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 862174
