SC100M-050-B-SK-S6 - Datasheet
Brighton Best
Category Information

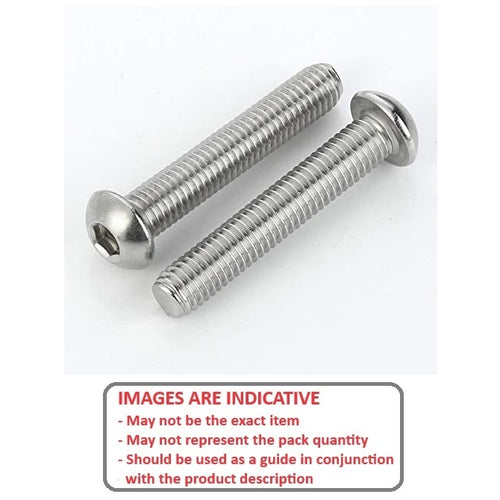

Screws - Button - Socket - Stainless - 316316 Stainless Socket Button Screws. UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7380.
Product Data
- Thread Size (C) : M10 (10x1.5mm)
- Thread Length (L)
50
mm
(Equiv. 1.969 in.) - Material 316 Stainless
- Max Head Diameter 18.0 mm
- Max Head Height 5.5 mm
- Hex Key (D) 6.00 mm
- Pitch 1.500 mm
- Threads Per Inch 16.93 TPI
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 861158
