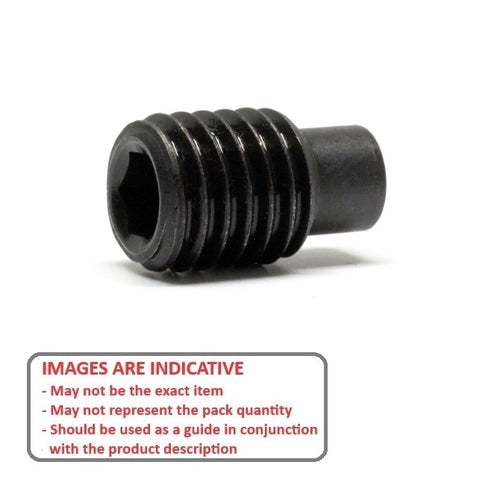

SS100M-0500-AS-DP - Datasheet

SSA

Product Data

• Thread Size : M10 (10x1.5mm)
• Thread Length (L) 44.7 mm
  (Equiv. 1.76 in.)
• Type Dog Point
• Overall Length (L + L1) 50.0 mm
• Tip Diameter (d) 6.6 - 7.0 mm
• Tip Length (L1) 5.0 - 5.3 mm
• Hex Key Size 5.00
• Pitch 1.500 mm
• Threads Per Inch 16.93 TPI
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Brighton Best 833157
