SS100M-0350-CS-FB - Datasheet
MBA
Category Information

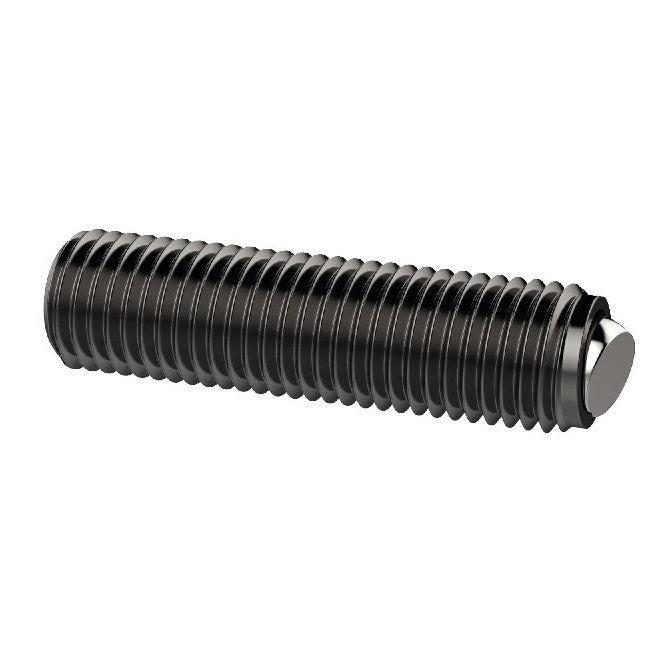

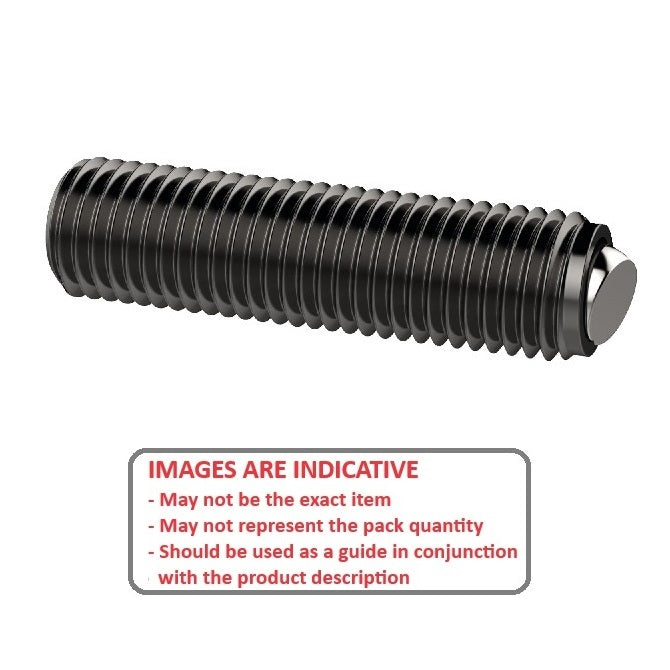

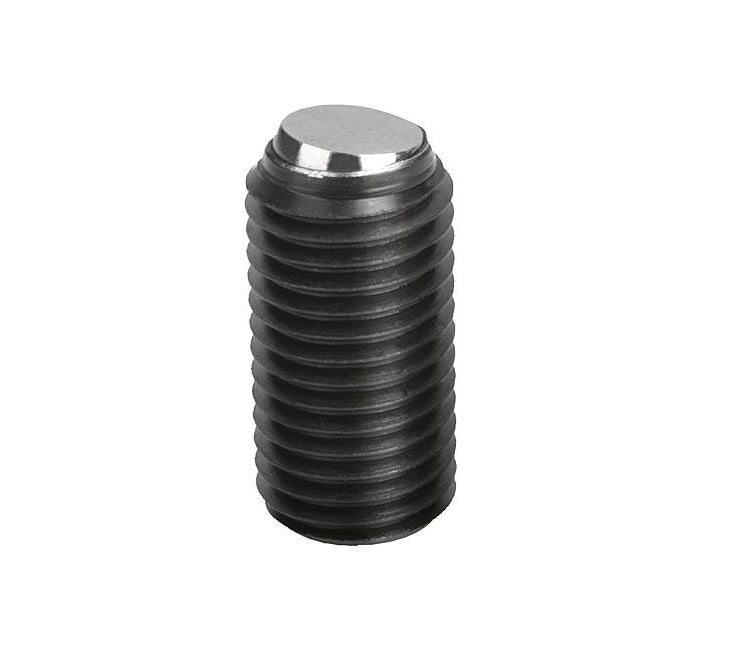

Socket Set Screws - Flat Tip Aligning - Carbon SteelCarbon Steel Flat Tip Aligning Socket Set Screws. Grub screws with a pivoting flat tip. The ball can pivot up to 9 Deg. To fasten the object securely to misaligned parts.
- Socket driven grub screws with a rotating flat tip.
- Also known as a flat ball tip set screw or a clamping screw
- Selection of tips include carbon steel, 440C Stainless steel and Polyacetal
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

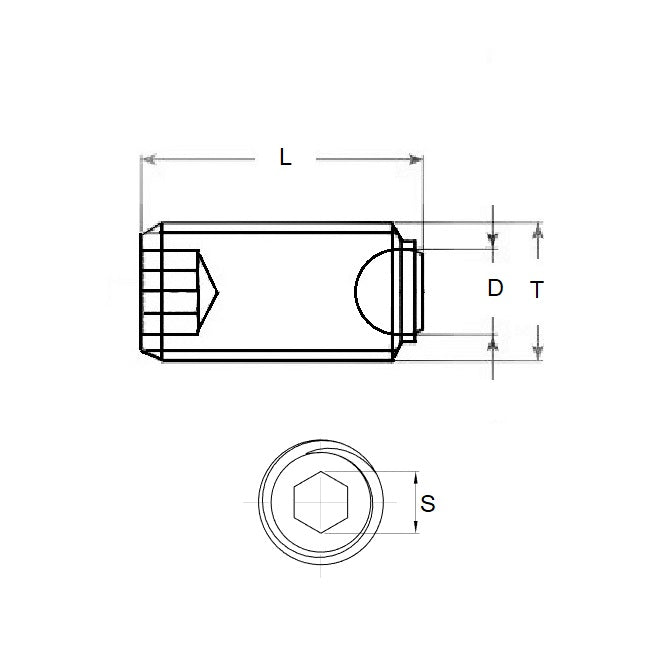

- Thread Size : M10 (10x1.5mm)
- Thread Length (L)
35.0
mm
(Equiv. 1.378 in.) - Type Aligning Flat Tip
- Ball Diameter (D) 7.0
- Hex Key Size 5.0
- Body Material Carbon Steel
- Ball Material Carbon Steel HRC 55-60
- Pitch 1.5 mm
- Threads Per Inch 16.93 TPI
- Finish Black Oxide
- Material Carbon Steel with Carbon Steel HRC 55-60 tip
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- S705CFM1035
