NT100M-NI-S4 - Datasheet
Brighton Best
Category Information

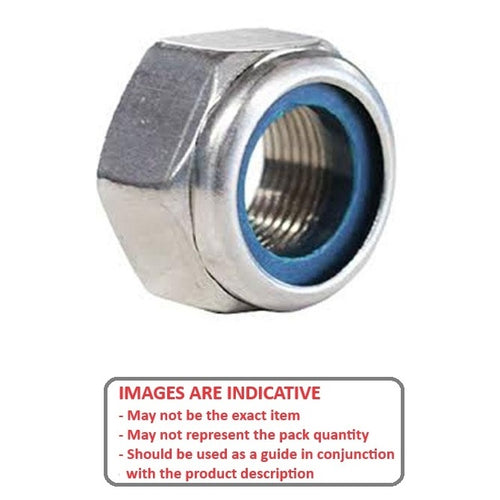

Nuts - Hexagonal - Nylon Insert - Stainless SteelStainless Steel Nylon Insert Hexagonal Nuts. Nylon Insert for Locking. NylocTM and other brands.
- An expanded range may be available on special order. Please enquire.
- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
- Thread Size : M10 (10x1.5mm)
- Thickness (H)
10.0
mm
(Equiv. 0.394 in.) - Across Flats (A/F)
17.0
mm
(Equiv. 0.669 in.) - 10.0
- Type Standard
- Pitch 1.500 mm
- Threads Per Inch 16.93 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 561050
- 93625A350
