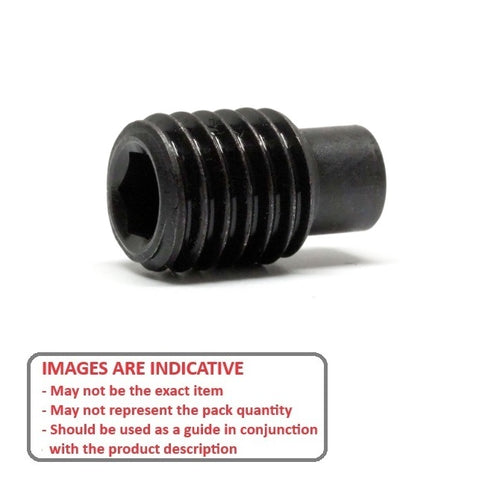

SS100M-0300-AS-DP - Datasheet

SSA

Product Data

• Thread Size : M10 (10x1.5mm)
• Thread Length (L) 24.7 mm
  (Equiv. 0.972 in.)
• Type Dog Point
• Overall Length (L + L1) 30.0 mm
• Tip Diameter (d) 6.6 - 7.0 mm
• Tip Length (L1) 5.0 - 5.3 mm
• Hex Key Size 5.00
• Pitch 1.500 mm
• Threads Per Inch 16.93 TPI
• Material Carbon Steel
