SS100M-0244-CS-FB - Datasheet
MBA
Category Information

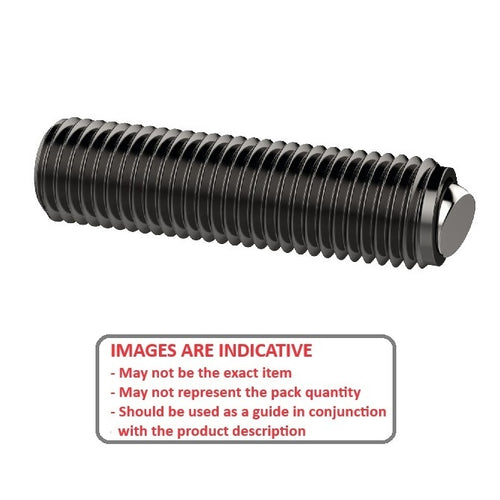

Socket Set Screws - Flat Tip Aligning - Carbon SteelCarbon Steel Flat Tip Aligning Socket Set Screws. Grub screws with a pivoting flat tip. The ball can pivot up to 9 Deg. To fasten the object securely to misaligned parts.
- Socket driven grub screws with a rotating flat tip.
- Also known as a flat ball tip set screw or a clamping screw
- Selection of tips include carbon steel, 440C Stainless steel and Polyacetal
Product Data

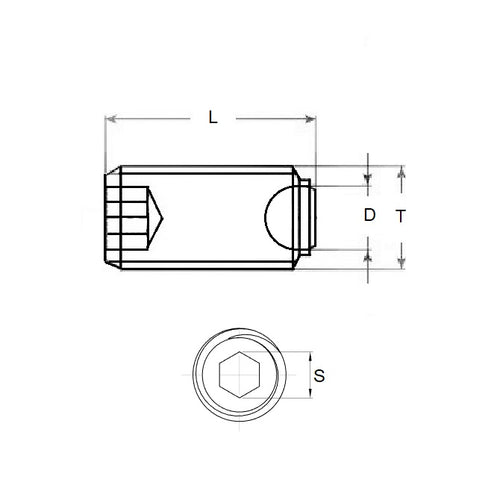

- Thread Size : M10 (10x1.5mm)
- Thread Length (L)
24.4
mm
(Equiv. 0.961 in.) - Type Aligning Flat Tip
- 25.0
- Ball Diameter (D) 6.0
- Hex Key Size 5.0
- Body Material Carbon Steel
- Ball Material Alloy Steel SUJ2 HRC 55 -60
- Pitch 1.5 mm
- Threads Per Inch 16.93 TPI
- Finish Black Oxide
- Material Carbon Steel with Alloy Steel SUJ2 HRC 55 -60 tip
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi FSM10-25
- Misumi FSMB10-25
- FSM1025
- FSMB1025
