SS100M-0242-CS-S440-FB - Datasheet
MBA
Category Information
Socket Set Screws - Flat Tip Aligning - Carbon SteelCarbon Steel Flat Tip Aligning Socket Set Screws. Grub screws with a pivoting flat tip. The ball can pivot up to 9 Deg. To fasten the object securely to misaligned parts.
- Socket driven grub screws with a rotating flat tip.
- Also known as a flat ball tip set screw or a clamping screw
- Selection of tips include carbon steel, 440C Stainless steel and Polyacetal
Product Data

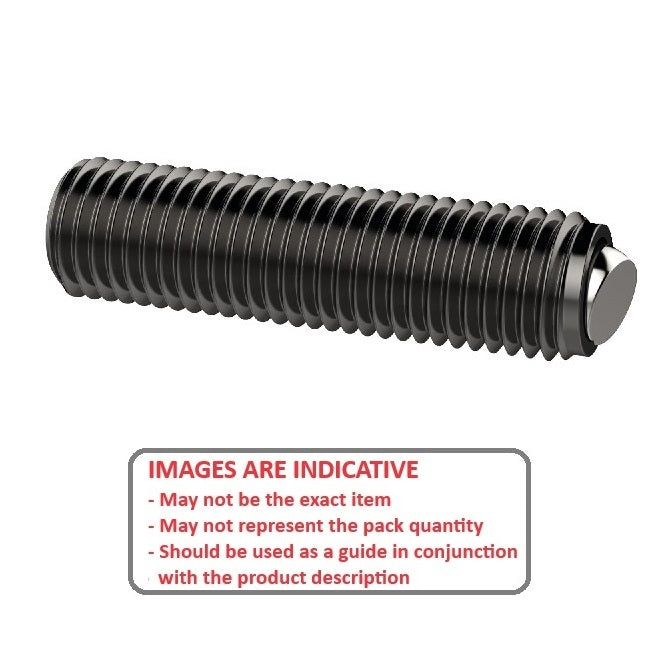

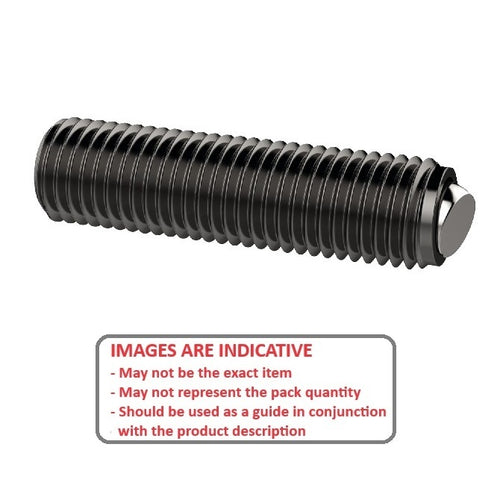

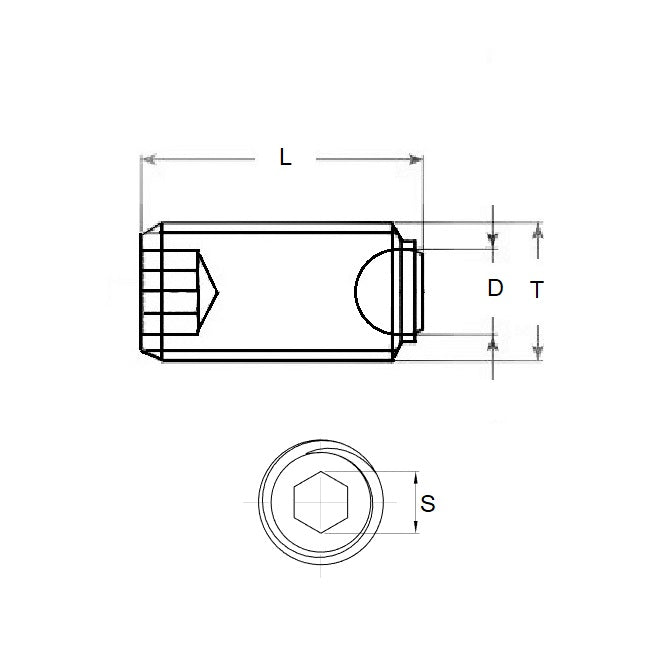

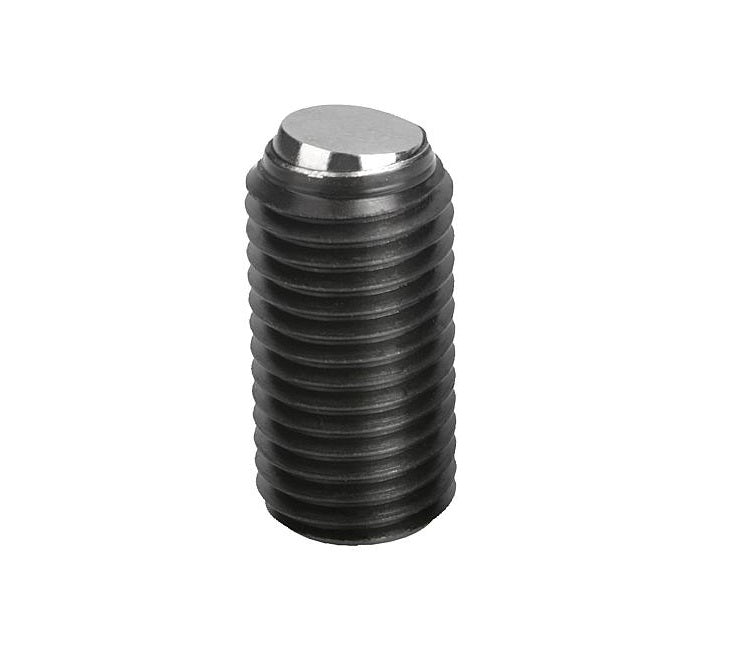

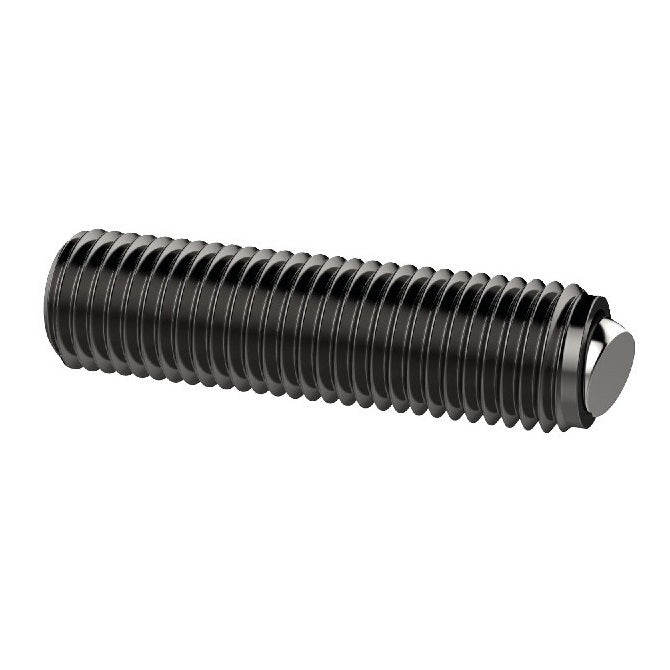

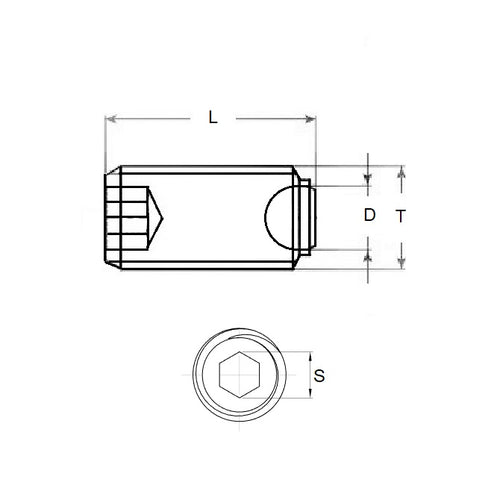

- Thread Size : M10 (10x1.5mm) + 0.10 / - 0.00
- Thread Length (L)
24.2
mm
+ 0.00 / - 0.10
(Equiv. 0.953 in.) - Type Aligning Flat Tip + 0.00 / - 0.12
- 25.0
- Ball Diameter (D) 6.0
- Hex Key Size 5.0
- Body Material Carbon Steel
- Ball Material 440C Stainless HRC 50-55
- Pitch 1.5 mm
- Threads Per Inch 16.93 TPI
- Finish Black Oxide
- Material Carbon Steel with 440C Stainless HRC 50-55 tip
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- KaVo C-FSM10-25
- CFSM1025
