SC100M-020-LH-SK-C - Datasheet
Brighton Best
Category Information

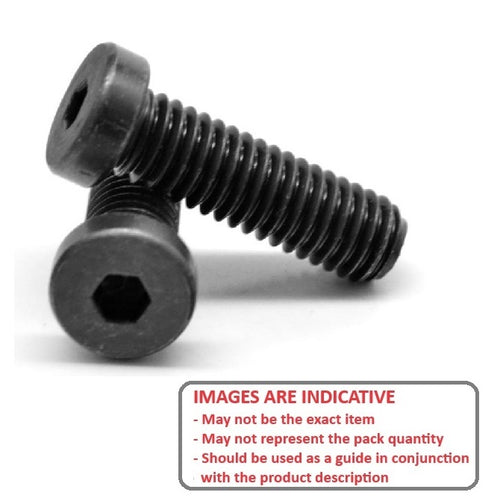

Screws - Low Head Socket - Carbon SteelCarbon Steel Low Head Socket Screws. UNC - UNF - METRIC - Alloy Steel.
- Note. Hex key size may. The size listed is the usual and minimum size.
Product Data
- Thread Size (C) : M10 (10x1.5mm)
- Thread Length (L)
20
mm
(Equiv. 0.787 in.) - Material High Tensile Steel / Black Oxide
- Head Height 9.64 - 10.00 mm
- Head Diameter 15.73 - 16.27 mm
- Usual Hex Key (D) 7.00 mm - May Vary
- Pitch 1.500 mm
- Threads Per Inch 16.93 TPI
- Material High Tensile Steel Black Oxide
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 531186
- 93070A213
