SC100M-016-LH-SK-C - Datasheet
Brighton Best
Category Information

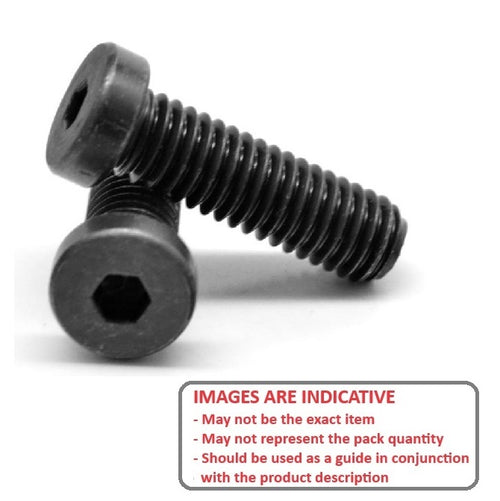

Screws - Low Head Socket - Carbon SteelCarbon Steel Low Head Socket Screws. UNC - UNF - METRIC - Alloy Steel.
- Note. Hex key size may. The size listed is the usual and minimum size.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : M10 (10x1.5mm)
- Thread Length (L)
16
mm
(Equiv. 0.63 in.) - Material High Tensile Steel / Black Oxide
- Head Height 9.64 - 10.00 mm
- Head Diameter 15.73 - 16.27 mm
- Usual Hex Key (D) 7.00 (May Vary) mm
- Pitch 1.500 mm
- Threads Per Inch 16.93 TPI
- Material High Tensile Steel Black Oxide
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 531180
- 93070A211
