Miniature Bearings Australia
MEB-75RS - Datasheet
MBA
Category Information

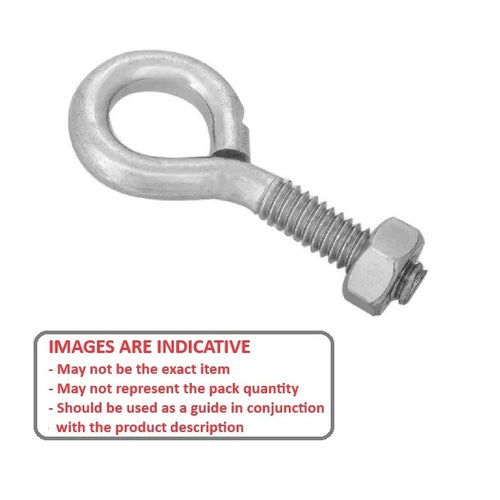

Eye Bolts - Bent - Stainless SteelStainless Steel Bent Eye Bolts. Not recommended for lifting. 304 stainless steel.
- Fastener with a loop or eye at one end, and a threaded shank on the other.
- Used to attach ropes or cables to secure objects by screwing the threaded end into a structure, with the loop providing an anchor point.
- Complete with nut.
- Rolled threads.

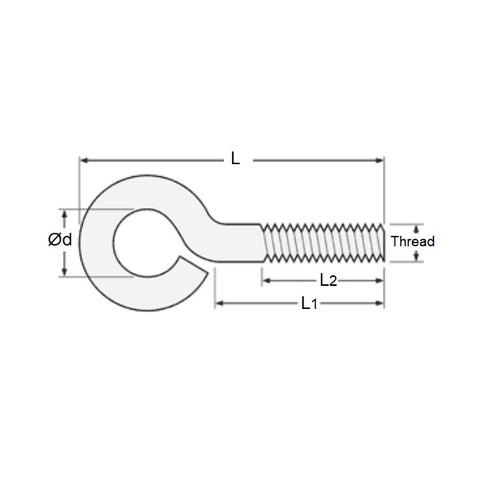

Product Data
- Thread : M10 (10x1.5mm)
- Overall Length 100.000 mm
- Shank Length 85.000 mm
- Thread Length 10.000 mm
- Eye Inside Diameter 10.000 mm
Product Compliance and Data
Additional Resources
