KF100M-050-7LQA - Datasheet

MBA

Category Information

Knobs - Lobe - Seven Lobe - Female - Quick Acting

Quick Acting Female Seven Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M10 (10x1.5mm)

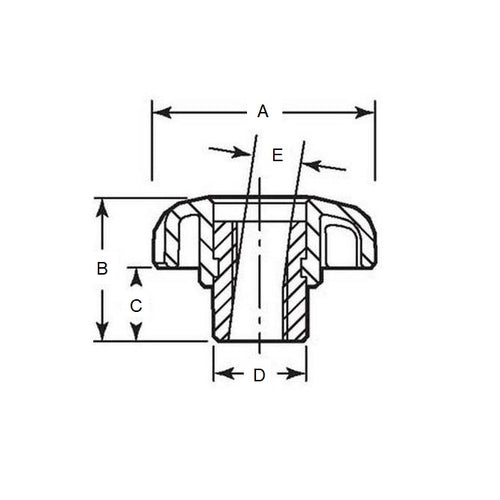

  • Head Diameter (A) 50.00 mm
  • Colour Black
  • Hub Diameter (D) 19.00 mm
  • Hub Length (C) 17.00 mm
  • Knob Height (B) 31.00 mm
  • E 10.30 mm
  • Material Steel Hub
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® KPB-1132
  • KPB1132
View full details

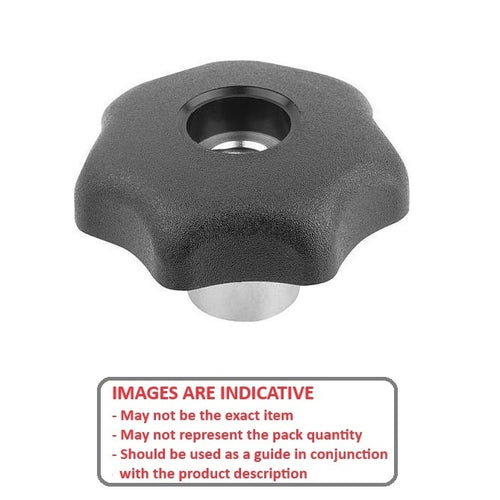

KF100M-050-7LQADiagramKF100M-050-7LQAImage
