KF100M-050-6L-PSS - Datasheet
MBA
Category Information
Knobs - Lobe - Six Lobe - Female - Through HoleThrough Hole Female Six Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data

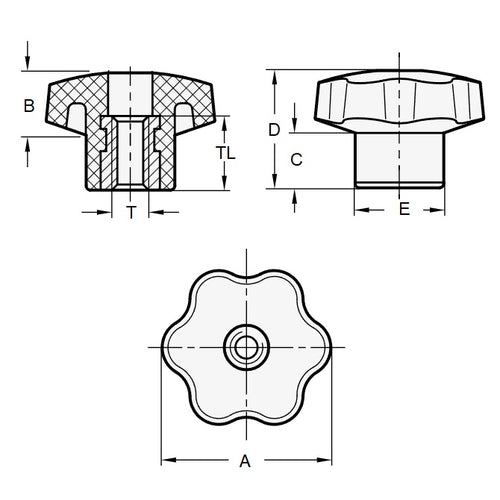

- Thread Size : M10 (10x1.5mm)
- Head Diameter (A)
50.00
mm
(Equiv. 1.969 in.) - Thread Length
18.0
mm
(Equiv. 0.709 in.) - Colour Black
- Hub Diameter (E) 20.00 mm
- Hub Length (C) 15.00 mm
- Knob Height (D) 29.00 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- JCL3560
- JCL-3560
