KF100M-050-6L-PBR - Datasheet

MBA

Category Information

Knobs - Lobe - Six Lobe - Female - Through Hole

Through Hole Female Six Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M10 (10x1.5mm)
  • Head Diameter (A) 50.00 mm
  • Thread Length 18.0 mm
  • Colour Black
  • Hub Diameter (E) 20.00 mm
  • Hub Length (C) 15.00 mm
  • Knob Height (D) 29.00 mm
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 4273T85
  • Reid Tool® JCL-3525
  • JCL3525
View full details

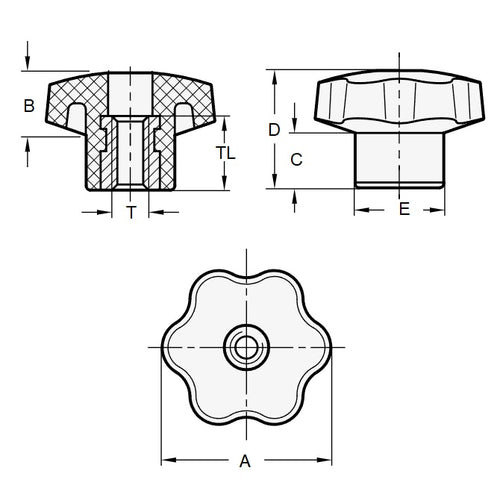

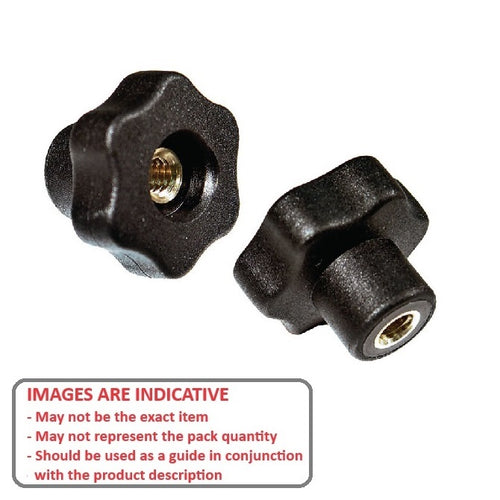

KF100M-050-6L-PBRDiagramKF100M-050-6L-PBRImage
