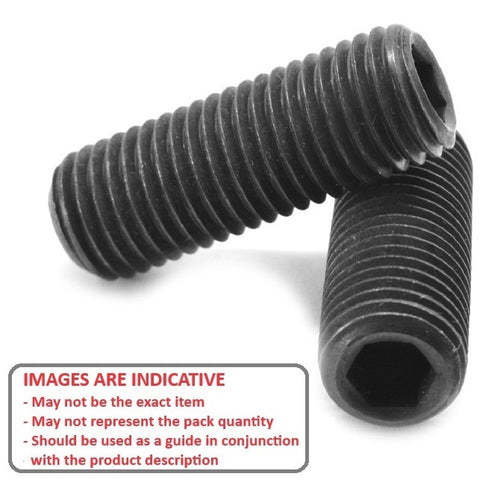

SS100MF-0200-AS - Datasheet

Brighton Best

Product Data

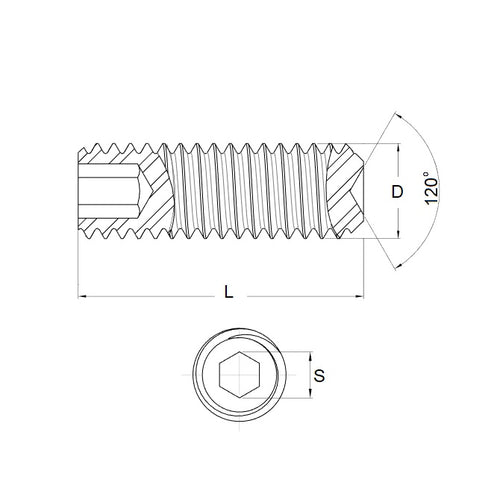

• Thread Size : M10 Fine (10x1.25mm)
• Thread Length (L) 20.0 mm
  (Equiv. 0.787 in.)
• Type Standard Cup Point
• Hex Key Size 5.00
• Pitch 1.250 mm
• Threads Per Inch 20.32 TPI
• Finish Hardened, Black Oxide Coated
• Material Carbon Steel - Hardened GD14.9

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
