EZL-100-125-143C-131-C - Datasheet
MBA
Category Information

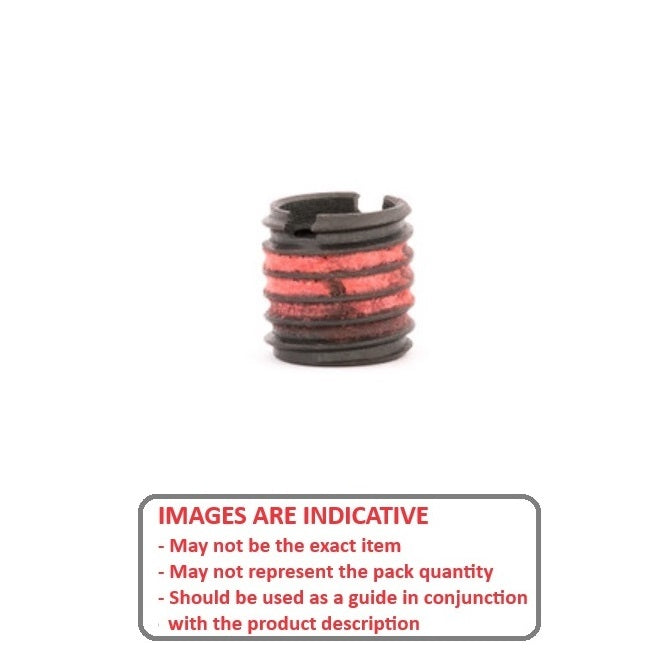

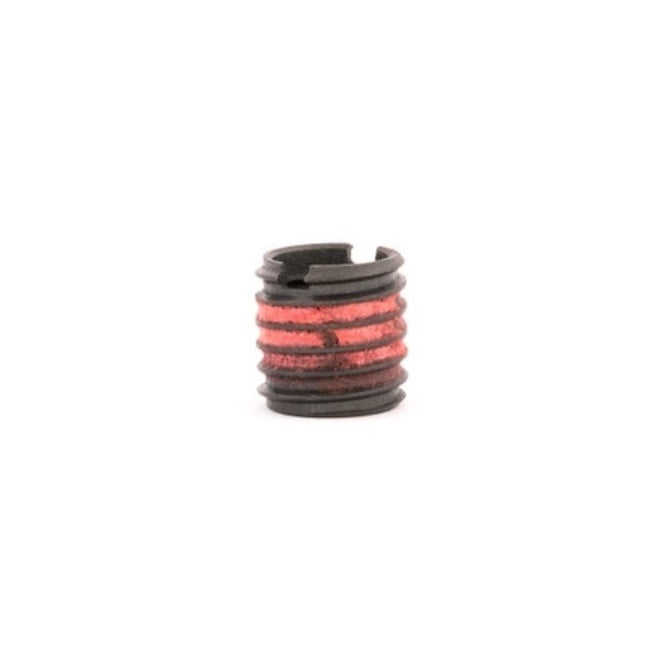

Thread Repair - Inserts - EZ-Lok - Solid Carbon SteelSolid Carbon Steel EZ-Lok Inserts Thread Repair. Easy to install with a standard tap, bolt and wrench.
- Automatic self locking pressure activated adhesive on external thread.
- Prevent or repair stripped threads
- No special tools required
- Install with a bolt and wrench
- Metric, UNC and UNF

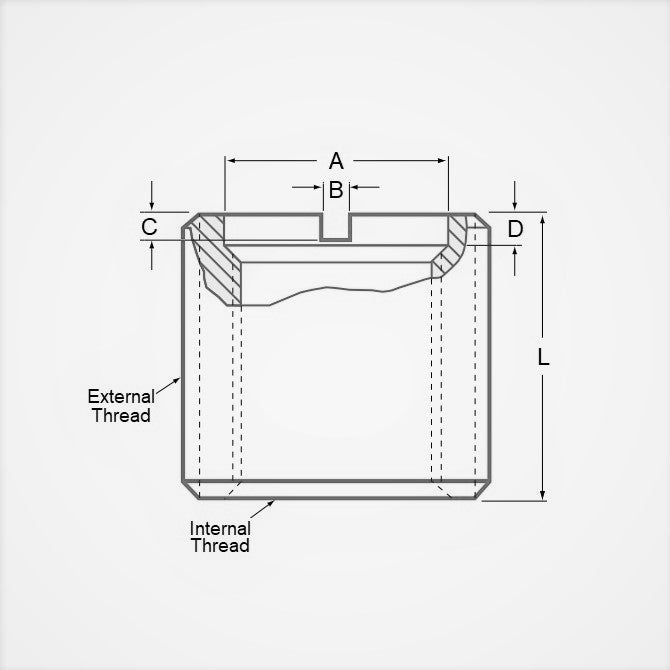

Product Data
- Internal Thread : M10 Fine (10x1.25mm)
- Length
13.08
mm
(Equiv. 0.515 in.) - External Tap Size 14.288mm (9/16-12 UNC)
- Tapping Hole Size 12.30 mm
- Drive Tool 500-5
Product Compliance and Data
Additional Resources
Cross References
- EZ-LOK 650-10F
- 65010F
