MLM-100M-100-NY-S4 - Datasheet
MBA
Category Information

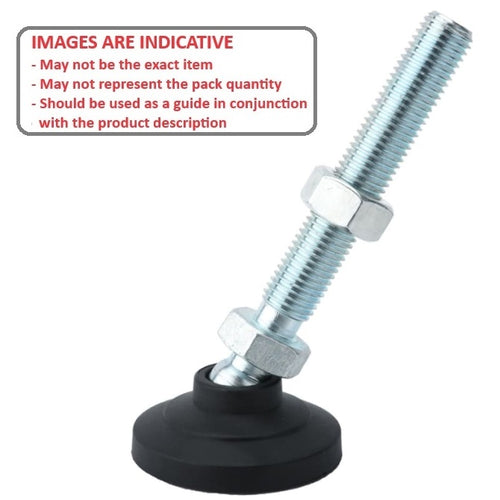

Mounts - Levelling Studded - Light Duty - Nylon - No Lag HolesNo Lag Holes Nylon Light Duty Levelling Studded Mounts. Adjusters.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M10 (10x1.5mm)
- Base Diameter (D) 60.00 mm
- Foot Height (C) 30.00 mm
- Thread Length (F) 100.00 mm
- Base Height (E) 7.50 mm
- Overall Height 130.0 mm
- Load Rating 150 Kg
- 17.00
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Misumi® C-CAJPDS10-100
- CCAJPDS10100
