MLM-100M-100-ZPP-ECO - Datasheet
ECO
Category Information

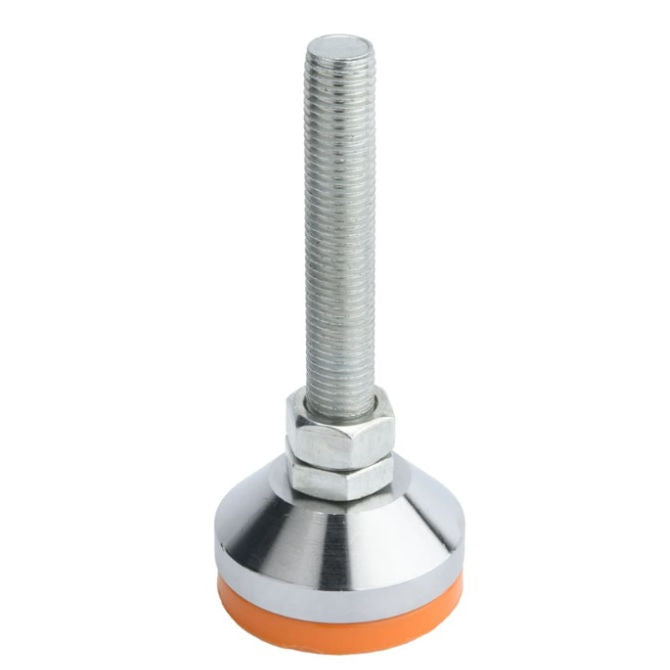

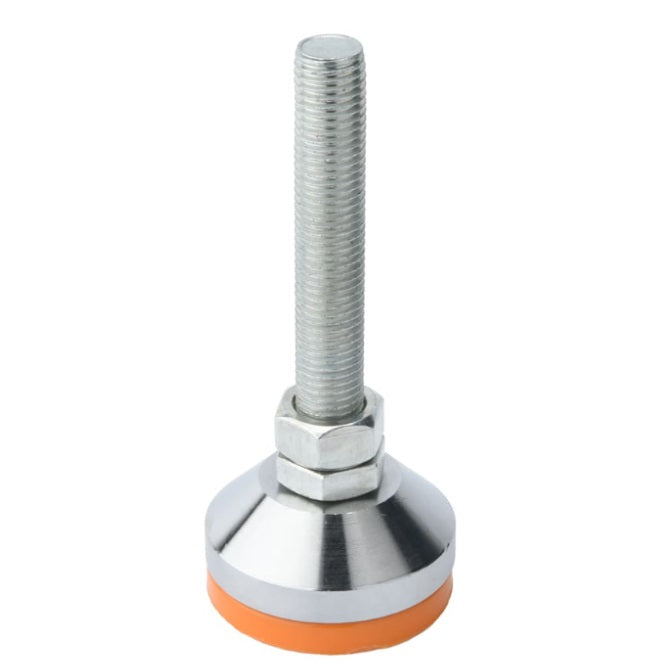

Mounts - Levelling Studded - Economy - PVC PaddedPVC Padded Economy Levelling Studded Mounts. Levelling adjusters. Protects general metalworking processes equipment including punch presses, milling machines, lathes, mixers, injection moulding machines, grinders from shock and vibration.
- An expanded range may be available on special order. Please enquire.
Product Data

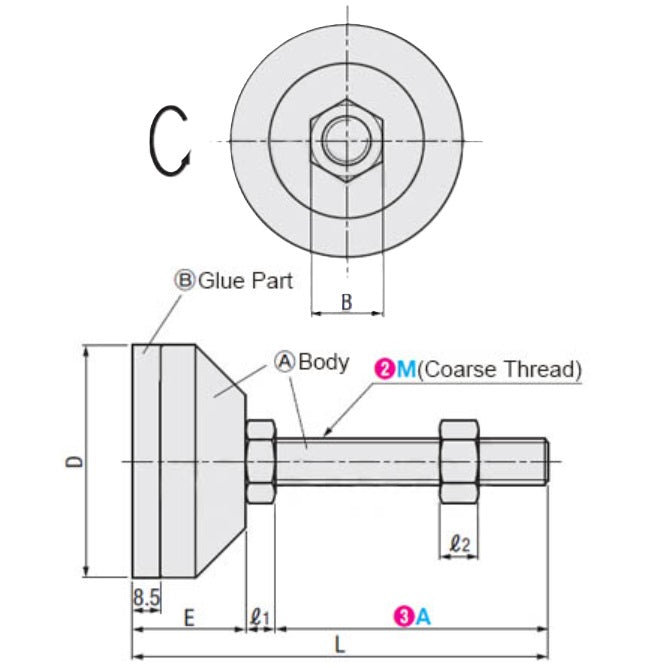

- Thread Size (A) : M10 (10x1.5mm)
- Base Diameter (D)
60.0
mm
(Equiv. 2.362 in.) - Foot Height (C)
37.0
mm
(Equiv. 1.457 in.) - Thread Length (F) 100.0 mm
- Base Height (E) 28.5 mm
- Overall Height 137.0 mm
- Load Rating 49.00 Kg
- Pad Thickness 9 mm
- Pad Material Polyvinyl Chloride
- Hex Flats (B) 17 mm
- Material Steel - Zinc
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CPVC10-100
- CCPVC10100
