KF100M-058-6L - Datasheet

MBA

Category Information

Knobs - Lobe - Six Lobe - Female - Standard

Standard Female Six Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M10 (10x1.5mm)
  • Head Diameter (A) 58 mm
    (Equiv. 2.283 in.)
  • Thread Length 18 mm
    (Equiv. 0.709 in.)
  • Colour Black
  • Hub Diameter (C) 34.00 mm
  • Hub Length (F) 27.000 mm
  • Knob Height (B) 18.00 mm
  • Material Brass
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NLJF10
  • CNLJF10
View full details

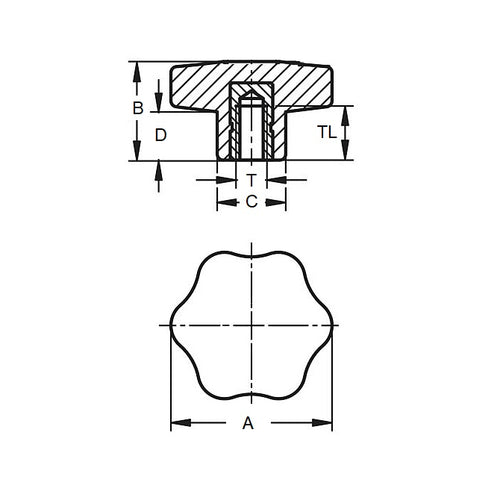

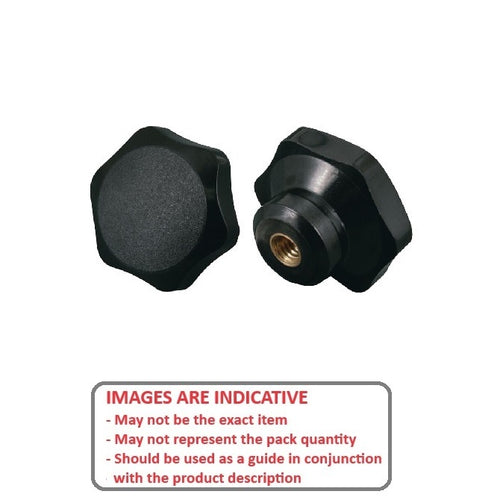

KF100M-058-6LDiagramKF100M-058-6LImage
