KM100M-050-5L25 - Datasheet

MBA

Category Information

Knobs - Lobe - Five Lobe - Male - Standard

Standard Male Five Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M10 (10x1.5mm)
  • Head Diameter (A) 50 mm
    (Equiv. 1.969 in.)
  • Thread Length 25 mm
    (Equiv. 0.984 in.)
  • Colour Black
  • Hub Diameter (C) 25.00 mm
  • Hub Length (D) 14.000 mm
  • Knob Height (B) 32.00 mm
  • Material Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NWJM10-25
  • CNWJM1025
View full details

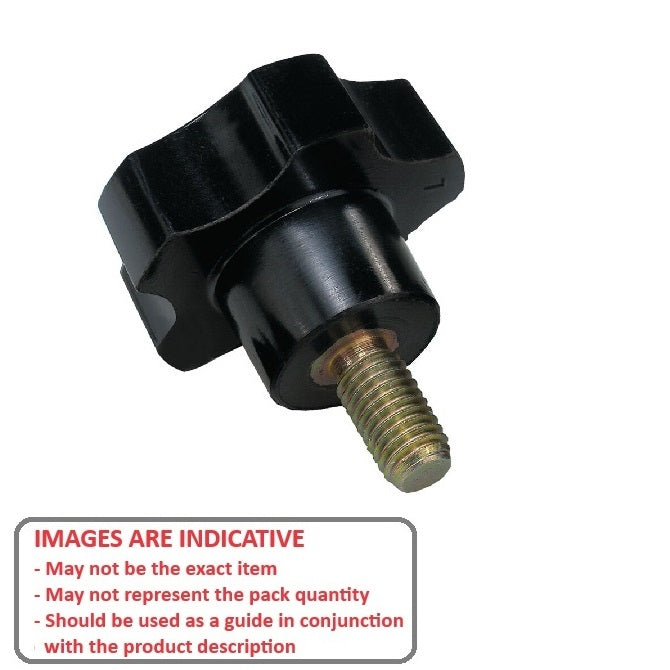

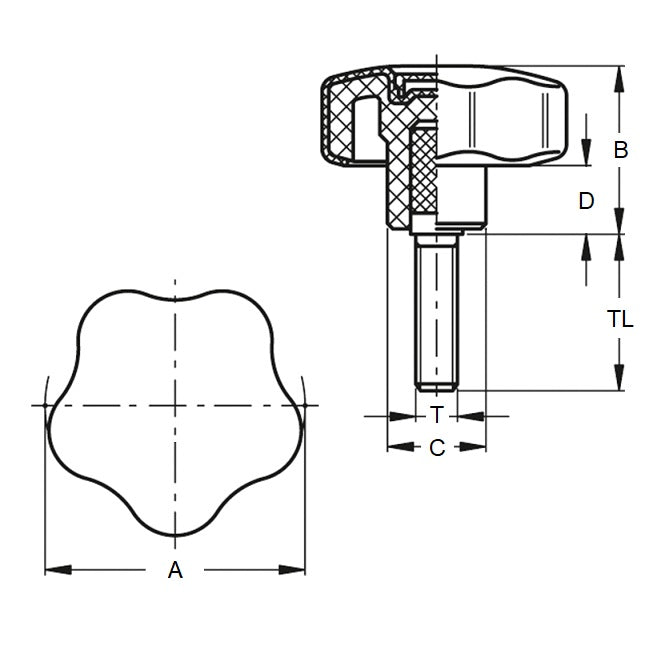

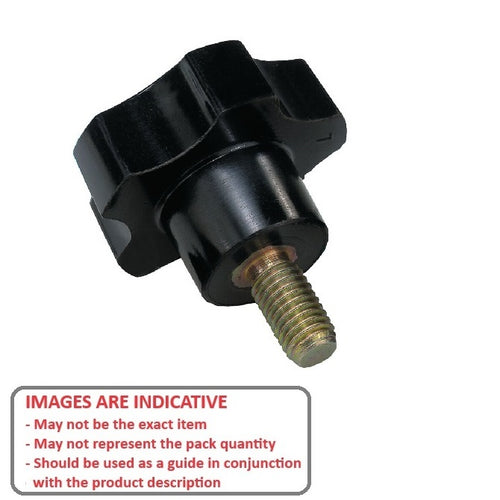

KM100M-050-5L25DiagramKM100M-050-5L25Image
