KF100M-050-7L - Datasheet

MBA

Category Information

Knobs - Lobe - Seven Lobe - Female - Standard

Standard Female Seven Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M10 (10x1.5mm)
  • Head Diameter (A) 50 mm
    (Equiv. 1.969 in.)
  • Thread Length 17 mm
    (Equiv. 0.669 in.)
  • Colour Black
  • Hub Diameter (C) 32.50 mm
  • Hub Length (D) 22.000 mm
  • Knob Height (B) 17.00 mm
  • Material Brass
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NQJF10
  • CNQJF10
View full details

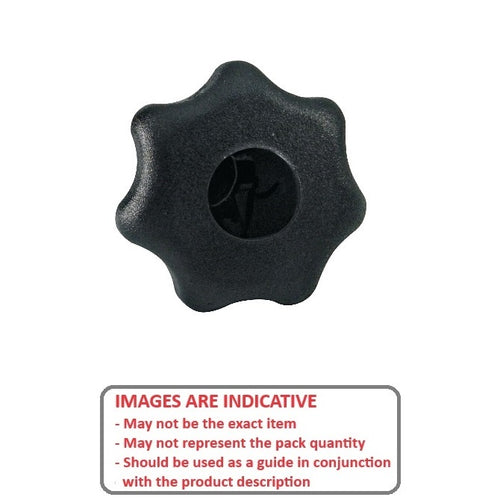

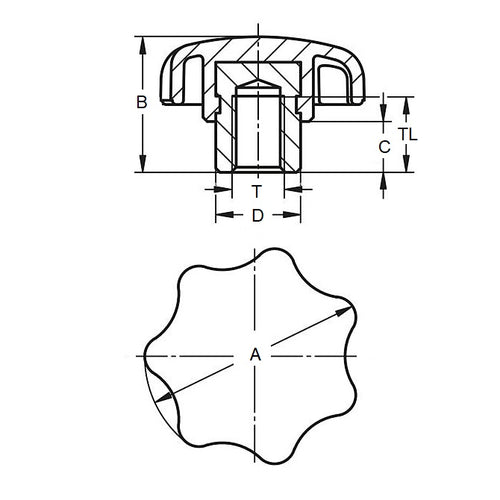

KF100M-050-7LDiagramKF100M-050-7LImage
