Miniature Bearings Australia
MLM-100M-080-ZRP-ECO - Datasheet
ECO
Category Information
Mounts - Levelling Studded - Economy - Rubber PaddedRubber Padded Economy Levelling Studded Mounts. Levelling adjusters. Protects general metalworking processes equipment including punch presses, milling machines, lathes, mixers, injection moulding machines, grinders from shock and vibration.
- An expanded range may be available on special order. Please enquire.

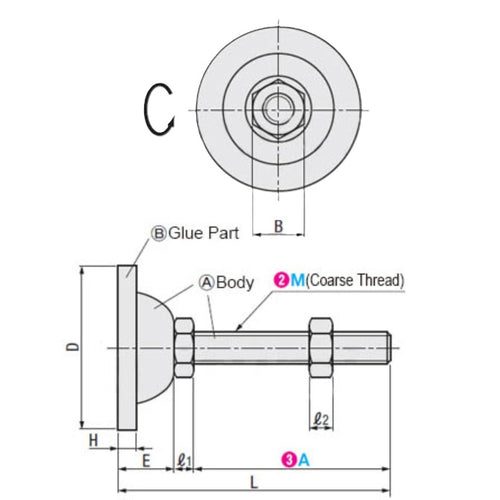

Product Data
- Thread Size (A) : M10 (10x1.5mm)
- Base Diameter (D)
45.0
mm
(Equiv. 1.772 in.) - Foot Height (C)
22.5
mm
(Equiv. 0.886 in.) - Thread Length (F) 80.0 mm
- Base Height (E) 16.5 mm
- Overall Height 102.5 mm
- Load Rating 22.54 Kg
- Pad Thickness 6 mm
- Pad Material Rubber
- Hex Flats (B) 17 mm
- Material Steel - Zinc
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CFJGN10-80
- CCFJGN1080
