SS100M-0400-S4-AT - Datasheet
MBA
Category Information

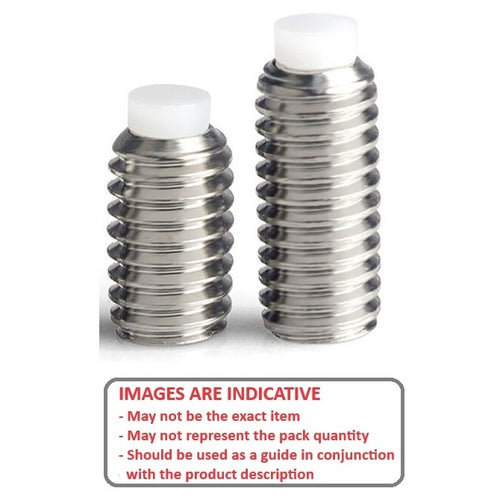

Socket Set Screws - Acetal Tipped - Stainless SteelStainless Steel Acetal Tipped Socket Set Screws. Acetal tipped grub screws. Soft tip compresses into threads to become self locking. Helps to prevent shaft damage.
- Socket driven grub screws that uses a non-metallic tip made of acetal to prevent damage to the shaft it secures.
- Acetal tip compresses into the threads of the set screw and conforms to the surface of the shaft, providing a self-locking mechanism and preventing marring or indentation, unlike traditional metal-tipped set screws.
Product Data
- Thread Size : M10 (10x1.5mm)
- Thread Length (L)
40.0
mm
(Equiv. 1.575 in.) - Type Acetal Tipped
- Overall Length (L + L1) 42.000 mm
- Tip Diameter (d) 8.000 mm
- Tip Length (L1) 2.000
- Pitch 1.50 mm
- Threads Per Inch 16.930 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi SBPPS10-40
- SBPPS1040
