KF100M-040-7L - Datasheet

MBA

Category Information

Knobs - Lobe - Seven Lobe - Female - Standard

Standard Female Seven Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M10 (10x1.5mm)
  • Head Diameter (A) 40 mm
    (Equiv. 1.575 in.)
  • Thread Length 14 mm
    (Equiv. 0.551 in.)
  • Colour Black
  • Hub Diameter (C) 28.00 mm
  • Hub Length (D) 22.000 mm
  • Knob Height (B) 14.00 mm
  • Material Brass
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NLZTF10
  • CNLZTF10
View full details

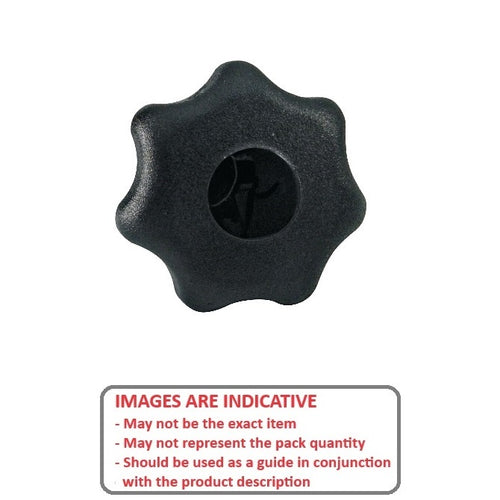

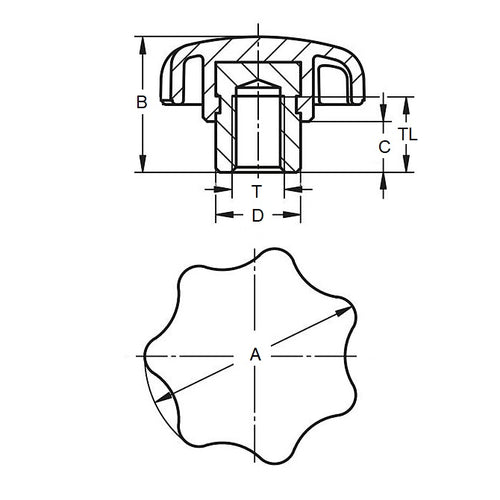

KF100M-040-7LDiagramKF100M-040-7LImage
