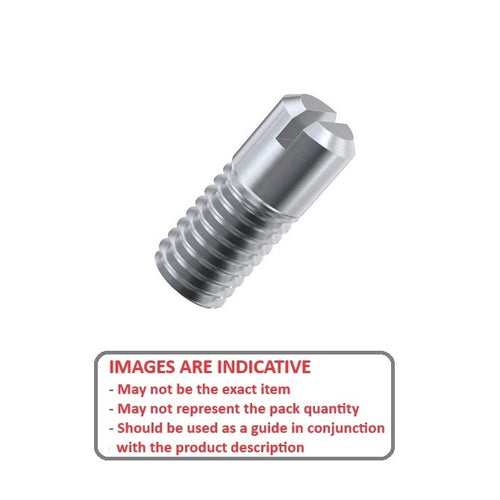

SS100M-0350-ASP - Datasheet

MBA

Product Data

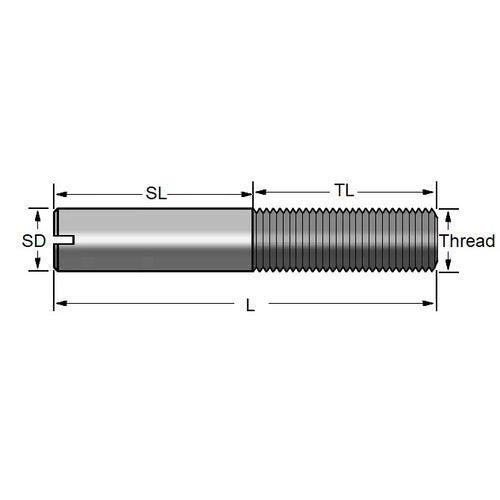

• Thread Size : M10 (10x1.5mm)
• Overall Length (L) 35 mm
  (Equiv. 1.378 in.)
• Type Partial Thread
• Thread Length 12.00 mm
• Shaft Length 23.00 mm
• Shaft Diameter 10.00 mm - 0.022 / + 0.000
• Slotted
• Material Steel Alloy, Rockwell B75
