SS100M-0300-AS-BT - Datasheet
MBA
Category Information

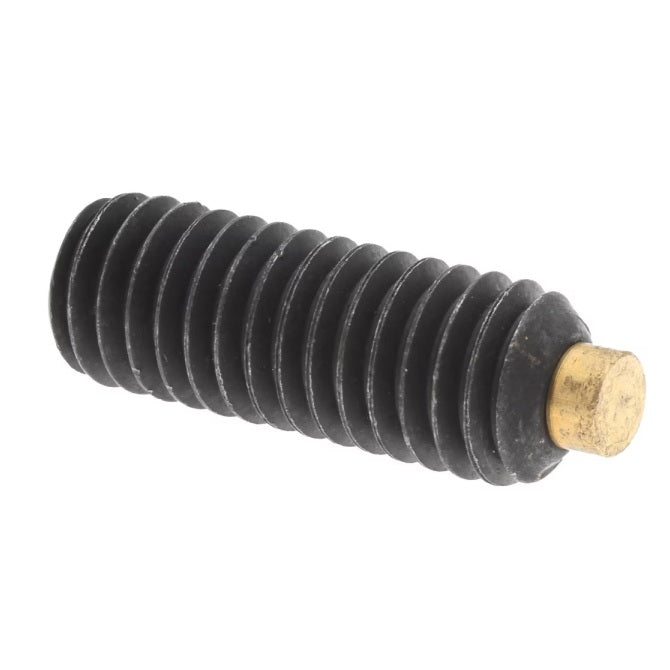

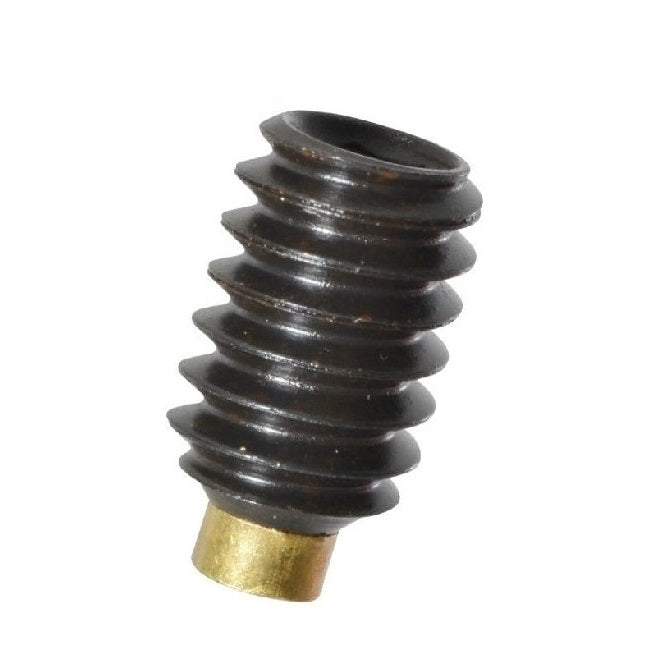

Socket Set Screws - Brass Tipped - Alloy SteelAlloy Steel Brass Tipped Socket Set Screws. Brass tipped grub screws. Helps to prevent shaft damage on harder shafts.
Product Data
- Thread Size : M10 (10x1.5mm)
- Thread Length (L)
30.0
mm
(Equiv. 1.181 in.) - Type Brass Tipped
- Overall Length (L + L1) 32.000 mm
- Tip Diameter (d) 8.000 mm
- Tip Length (L1) 2.000
- Pitch 1.50 mm
- Threads Per Inch 16.930 TPI
- Material Black Oxide Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi SBCP10-30
- SBCP1030
