THS100M-025-K-3-SHL - Datasheet
MBA
Category Information

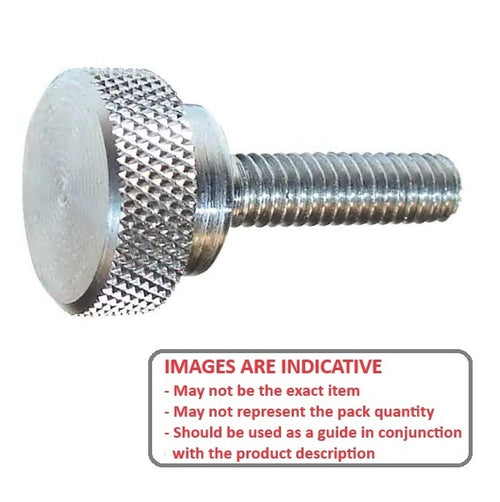

Screws - Thumb - ShoulderShoulder Thumb Screws. 303 Stainless Steel
- An expanded range may be available on special order. Please enquire.
Product Data

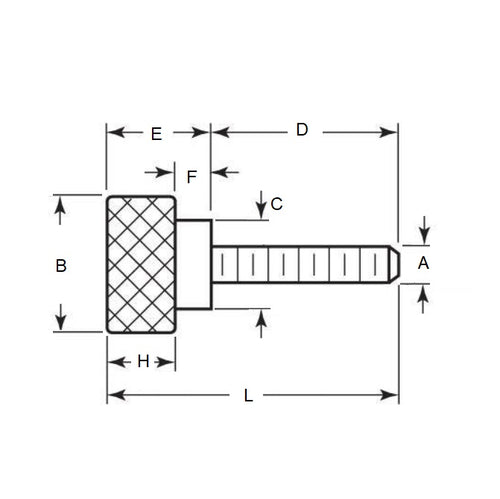

- Thread Size (A) : M10 (10x1.5mm)
- Thread Length (D) 25.00 mm
- Overall Length (L) 48.000 mm
- Head Diameter (B) 36.00 mm
- Head Height incl Shoulder (E) 23.00 mm
- Material Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi® C-NKOS10-25
- CNKOS1025
