SS100M-0120-AS-AT - Datasheet

MBA

Category Information

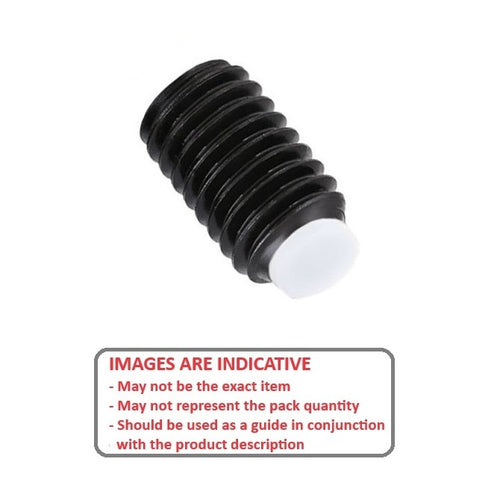

Socket Set Screws - Acetal Tipped - Alloy Steel

Alloy Steel Acetal Tipped Socket Set Screws. Acetal tipped grub screws. Soft tip compresses into threads to become self locking. Helps to prevent shaft damage.

  • Socket driven grub screws that uses a non-metallic tip made of acetal to prevent damage to the shaft it secures.
  • Acetal tip compresses into the threads of the set screw and conforms to the surface of the shaft, providing a self-locking mechanism and preventing marring or indentation, unlike traditional metal-tipped set screws.

Product Data

  • Thread Size : M10 (10x1.5mm)
  • Thread Length (L) 12.0 mm
    (Equiv. 0.472 in.)
  • Type Acetal Tipped
  • Overall Length (L + L1) 14.000 mm
  • Tip Diameter (d) 8.000 mm
  • Tip Length (L1) 2.000
  • Pitch 1.50 mm
  • Threads Per Inch 16.930 TPI
  • Material Black Oxide Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi SBPP10-12
  • SBPP1012
