KM100M-045-TEE-B - Datasheet
MBA
Category Information

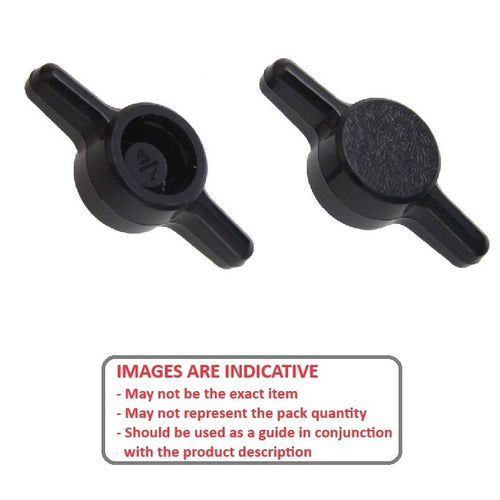

Knobs - Thumb - For Cap ScrewsFor Cap Screws Thumb Knobs. Four Types and four colours to fit onto Socket Head Cap Screws.
- An expanded range may be available on special order. Please enquire.
- To fit Socket Head Cap Screws (Order Separately)
- Choice of 4 Colours.
- Choice of 4 styles.
- Made From Acetal Resin.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Suitable Cap Screw Thread : M10 (10.00mm) - Use Own Screw

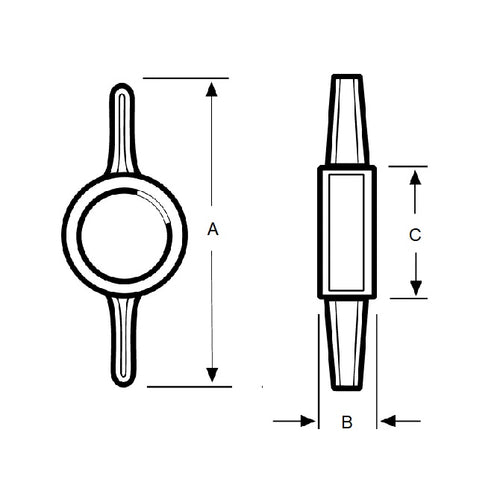

- Head Diameter (A)
45.00
mm
(Equiv. 1.772 in.) - Thickness (B)
12.5
mm
(Equiv. 0.492 in.) - Colour Black
- Style Tee
- Hub Diameter (C) 20.000 mm
- Material Plastic
