Category Information

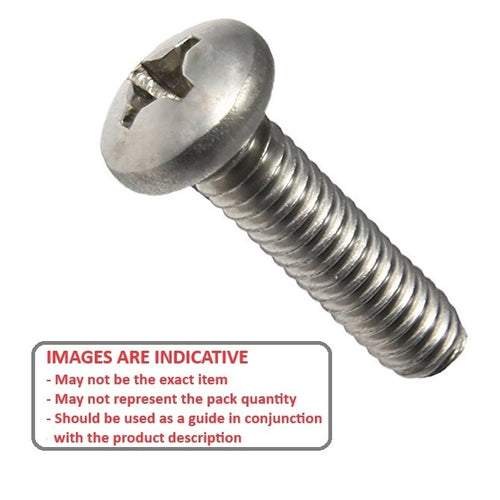

Screws - Pan Head - Pozidrive - 303-304 Stainless303-304 Stainless Pozidrive Pan Head Screws. Metric Only
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : M1.6 (1.6x0.35mm)
- Thread Length (L)
5
mm
(Equiv. 0.197 in.) - Material 304 Stainless
- Max Head Diameter 2.4 mm
- Max Head Height 0.6 mm
- Pitch 0.350 mm
- Threads Per Inch 72.57 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
