KM100M-050-5L30 - Datasheet

MBA

Category Information

Knobs - Lobe - Five Lobe - Male - Standard

Standard Male Five Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M10 (10x1.5mm)
  • Head Diameter (A) 50.00 mm
    (Equiv. 1.969 in.)
  • Thread Length 30.0 mm
    (Equiv. 1.181 in.)
  • Colour Black
  • Hub Diameter (C) 25.00 mm
  • Hub Length (D) 17.50 mm
  • Knob Height (B) 35.00 mm
  • Steel
  • Material Phenolic
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NWJM10-30
  • CNWJM1030
View full details

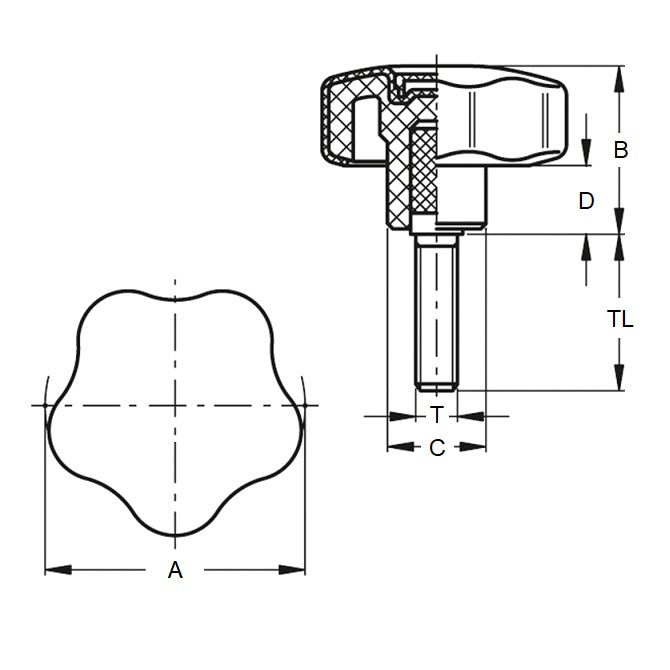

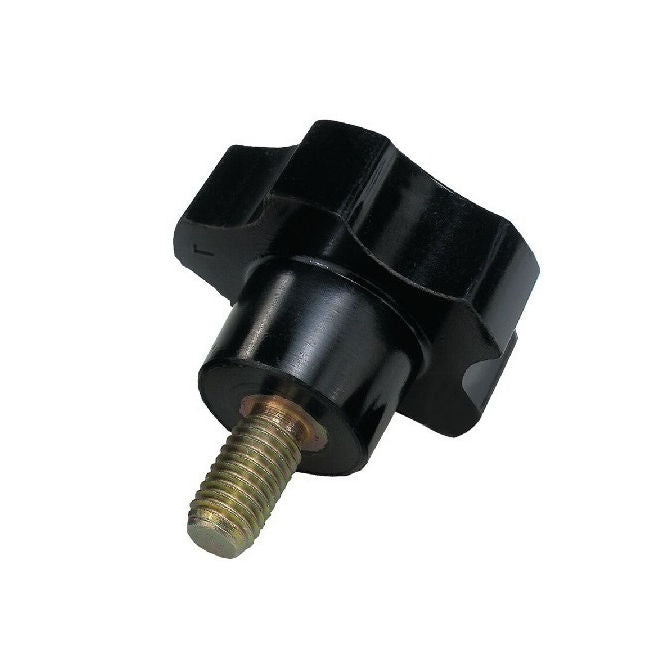

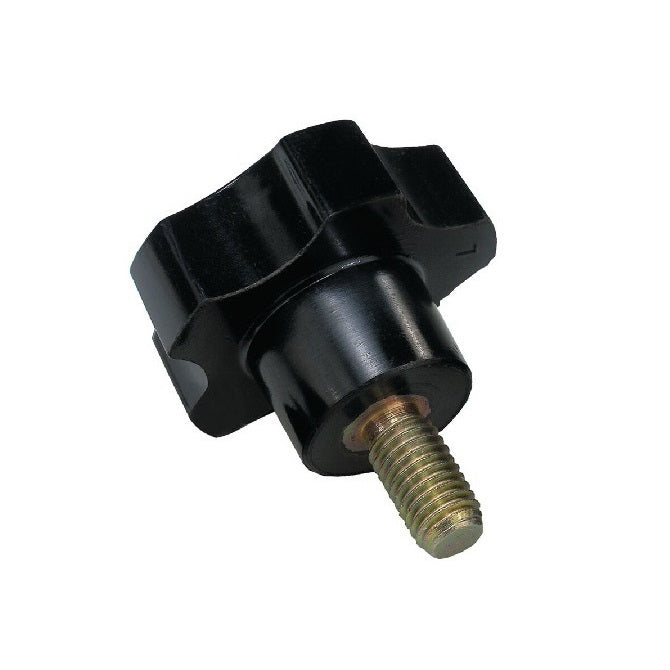

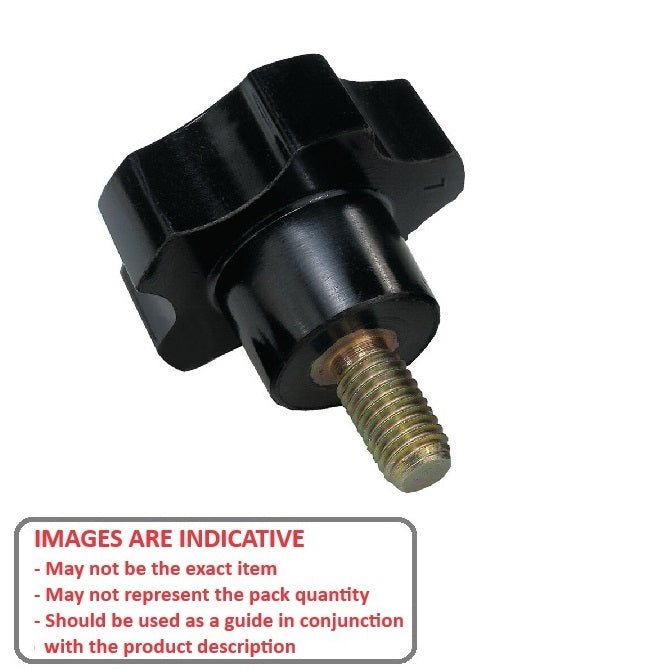

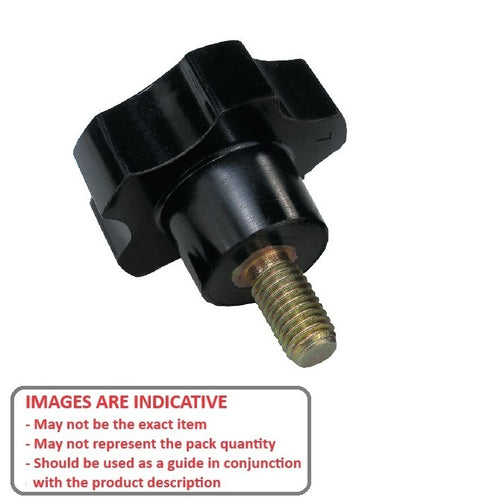

KM100M-050-5L30DiagramKM100M-050-5L30Image
