4R-0143-0300-KS6U - Datasheet

ExaktKey

Category Information

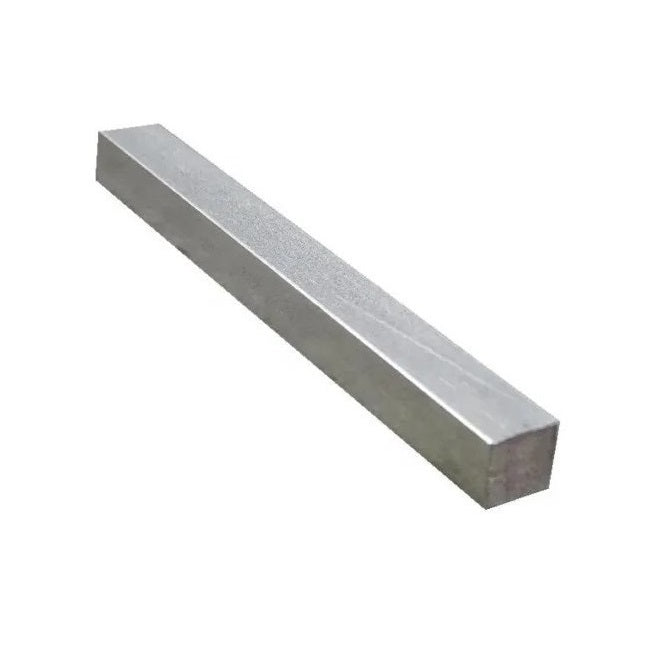

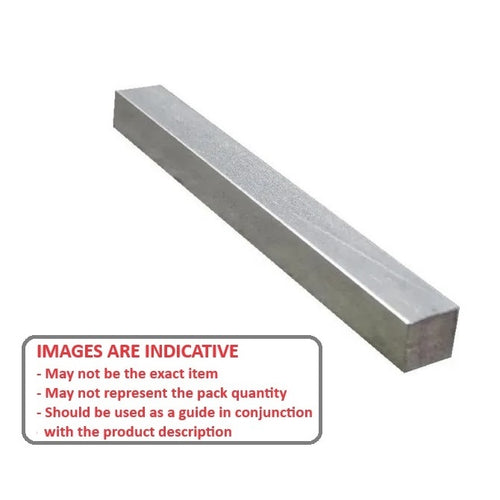

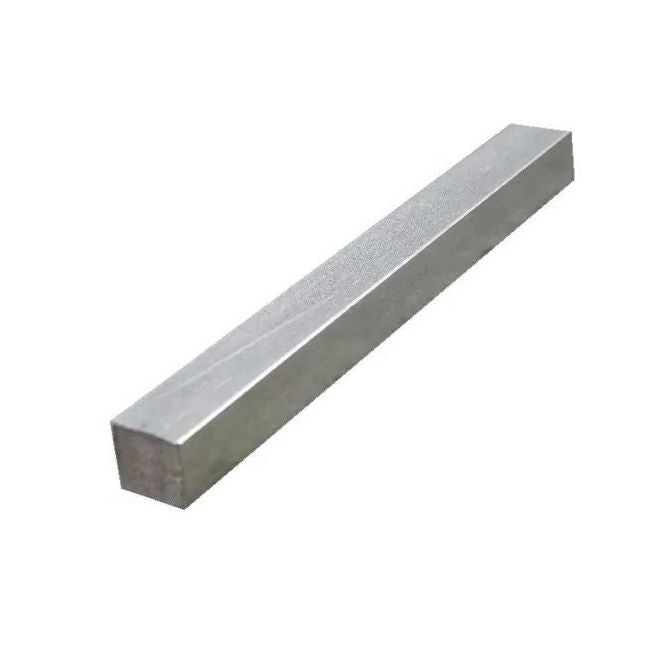

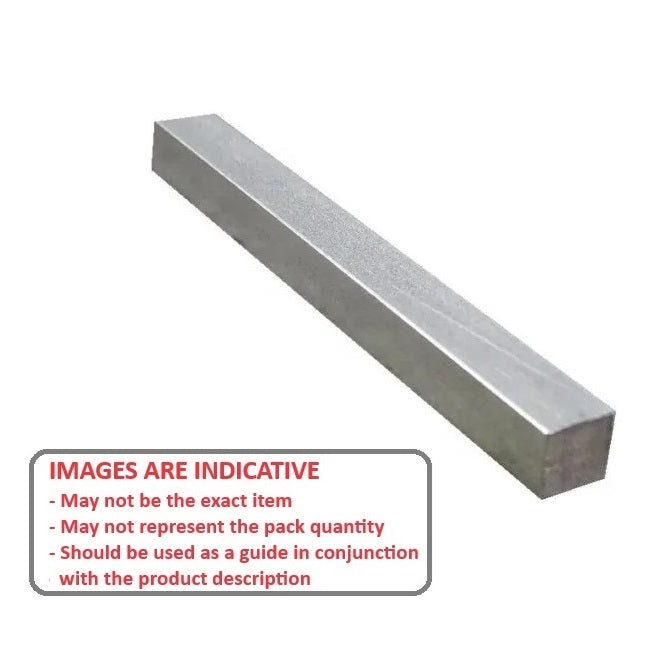

Keysteel Lengths - Square - Stainless Steel

Stainless Steel Square Keysteel Lengths. 303, 304 and 316 grade key steel. Square stainless steel bar that can be used for keysteel or for small construction projects.

  • An expanded range may be available on special order. Please enquire.
  • Use oversized for replacing keys where the keyway may be slightly worn - standard aftermarket keysteel
  • Use undersized for manufacturing and new applications where the keyway tolerances can be controlled

Product Data

  • Width (s1) : 14.288 mm + 0 / - 0.102
    (Equiv. 0.563 in.)
  • Height (s2) 14.288 mm + 0 / - 0.102
    (Equiv. 0.563 in.)
  • Length (L) 300 mm +/- 3.2
    (Equiv. 11.811 in.)
  • Tolerance Type Undersized
  • Red End Colour Code
  • Material Stainless Steel 316 (Similar to A4, 18-10)
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • NoCor 8005620562-12-9-16SQ316SS
  • MAK-A-KEY JMEDS916
  • 800562056212916SQ316SS
