2R-0100-0160-1000-KS4U - Datasheet
ExaktKey
Category Information

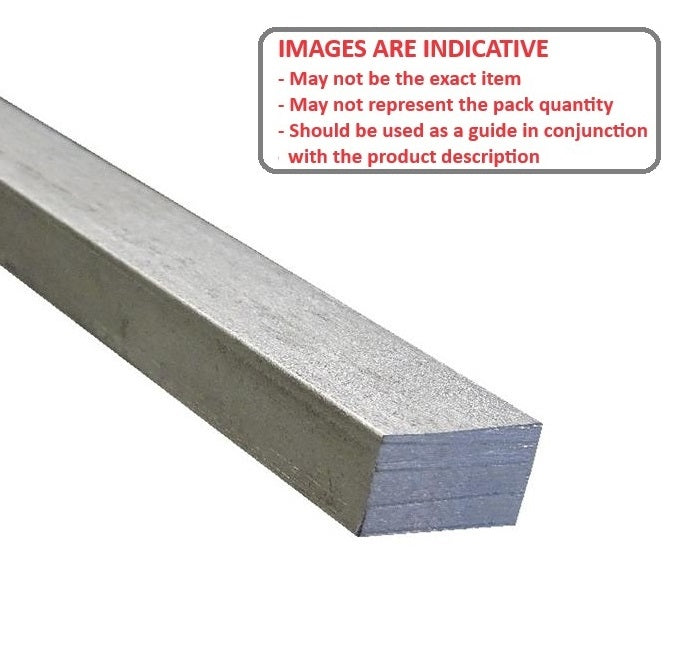

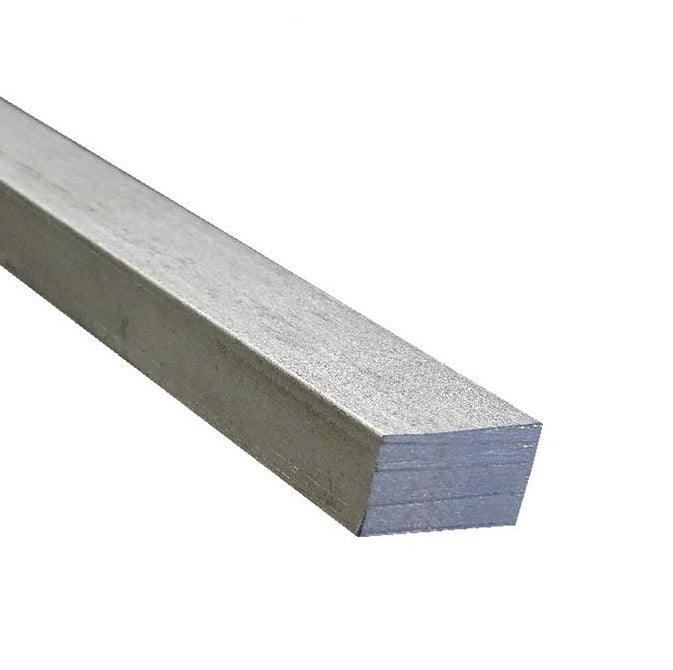

Keysteel Lengths - Rectangular - Stainless SteelStainless Steel Rectangular Keysteel Lengths. 303, 304 and 316 key steel. Rectangular stainless steel bar that can be used for keysteel or for small construction projects.
- An expanded range may be available on special order. Please enquire.
- Use oversized for replacing keys where the keyway may be slightly worn - standard aftermarket keysteel
- Use undersized for manufacturing and new applications where the keyway tolerances can be controlled
Product Data
- Width (s1)
:
10.000
mm
+ 0 / - 0.076
(Equiv. 0.394 in.) - Height (s2)
16.000
mm
+ 0 / - 0.076
(Equiv. 0.63 in.) - Length (L)
1000
mm
+/- 3.2
(Equiv. 39.37 in.) - Tolerance Type Undersized
- End Colour Code Red
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
