KW-056-286-Z - Datasheet
ExaktKey
Category Information

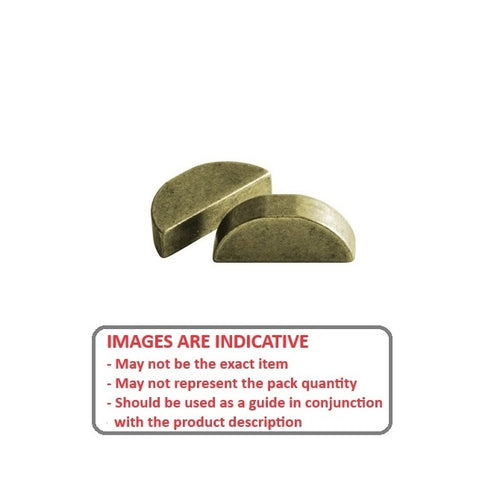

Keys - Woodruff - Zinc PlatedZinc Plated Woodruff Keys. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data

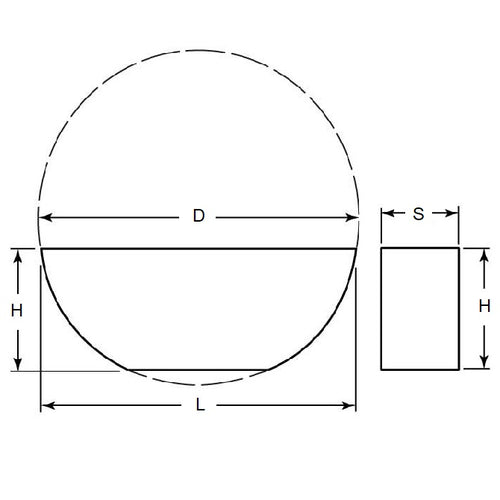

- Thickness (S)
:
5.56
mm
+/- 0.025
(Equiv. 0.219 in.) - Basis Diameter (D)
28.58
mm
+/- 0.250
(Equiv. 1.125 in.) - Approx. Height (H)
12.0
mm
(Equiv. 0.472 in.) - Approx. Length (L) 28.00 mm
- Finish Zinc Plated
- Material Carbon Steel 1035 Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- WOODRUFF 709-ZP
- Make-A-Key HMEDW0017
- 709ZP
