KW-040-094-217-Z - Datasheet
ENQUIRE
Category Information

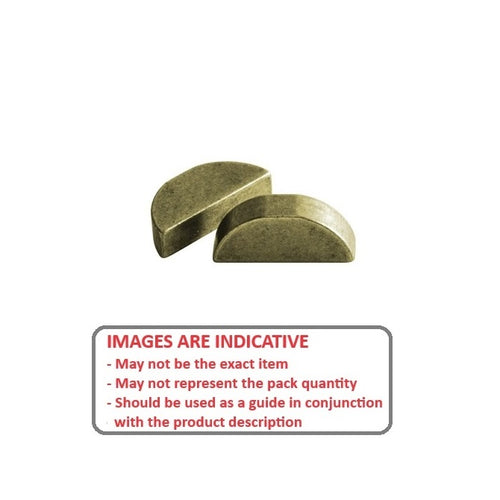

Keys - Woodruff - Zinc PlatedZinc Plated Woodruff Keys. This is the main category in this series
- An expanded range may be available on special order. Please enquire.

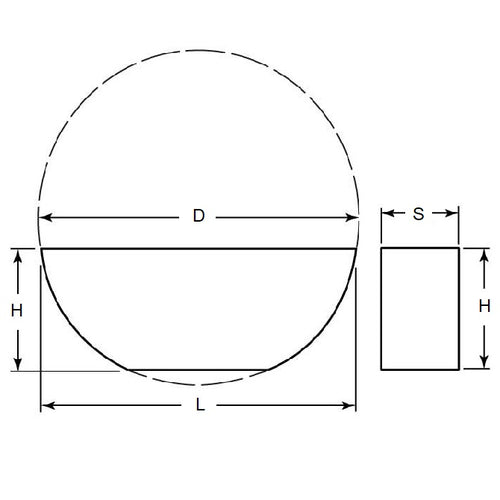

Product Data
- Thickness (S)
:
3.97
mm
+/- 0.025
(Equiv. 0.156 in.) - Approx. Height (H)
9.4
mm
+/- 0.250
(Equiv. 0.37 in.) - Approx. Length (L) 21.69 mm
- Basis Diameter (D) 22.23 mm
- Finish Zinc Plated
- Material Carbon Steel 1035 Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor® 507ZP
- ANSI 507-ZP
- Make-A-Key HMEDW0010
- Key Size 10 Zinc Plated
- KW039222Z
