KW-039-159-Z - Datasheet
ExaktKey
Category Information

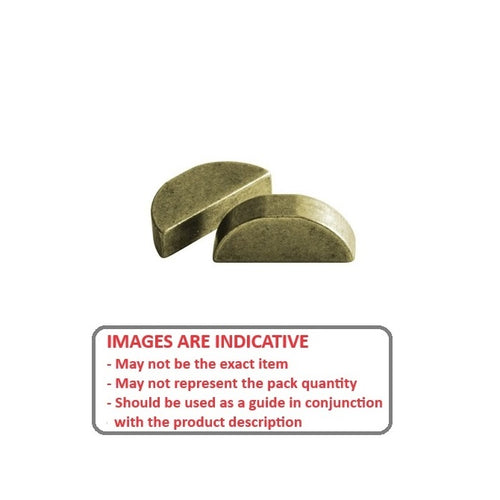

Keys - Woodruff - Zinc PlatedZinc Plated Woodruff Keys. This is the main category in this series
- An expanded range may be available on special order. Please enquire.

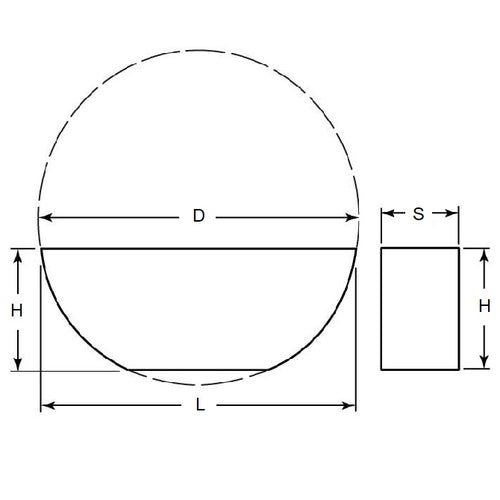

Product Data
- Thickness (S)
:
3.97
mm
+/- 0.025
(Equiv. 0.156 in.) - Basis Diameter (D)
15.88
mm
+/- 0.250
(Equiv. 0.625 in.) - Approx. Height (H)
6.4
mm
(Equiv. 0.252 in.) - Approx. Length (L) 15.56 mm
- Finish Zinc Plated
- Material Carbon Steel 1035 Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- WOODRUFF 505-ZP
- MAK-A-KEY HMEDW0006
- 505ZP
