Miniature Bearings Australia
KW-060-080-196-C - Datasheet
ENQUIRE
Category Information

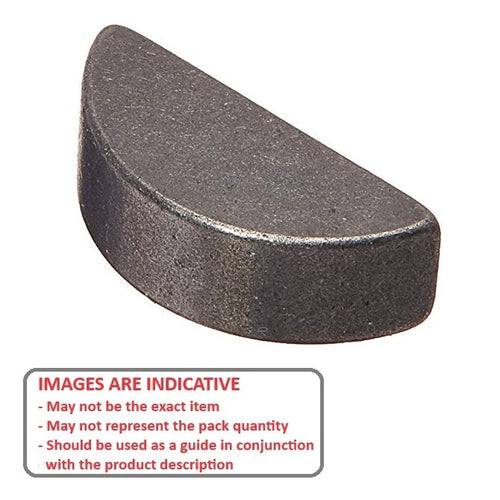

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data

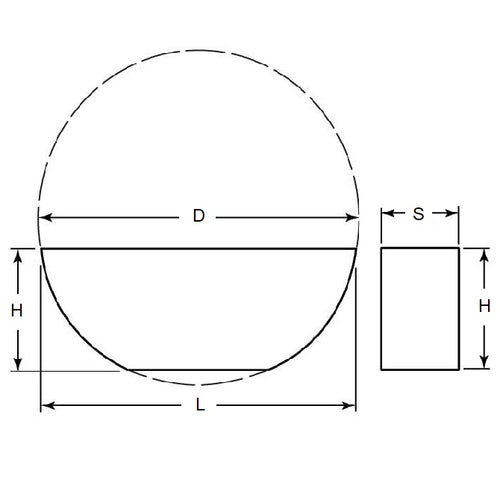

- Thickness (S) : 6.00 mm
- Approx. Height (H) 8.0 mm
- Approx. Length (L) 19.60 mm
- Basis Diameter (D) 20.00 mm
- Finish Plain
- Hardness HRB 80
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- NoCor® WKMC060075
- KW060200C
